State Industries 100191173
40 GAL NAECA 3 TALL PROPANE
SKU
635310

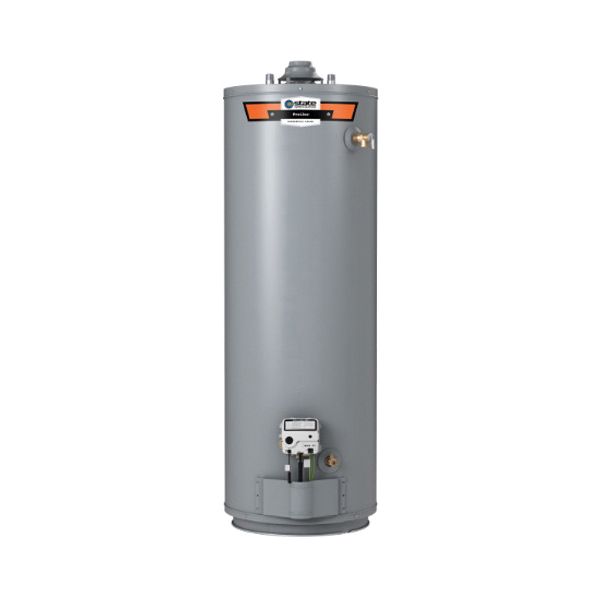

State Industries ProLine® Gas Water Heater, Series: GS6 40 BCT, 36000 Btu/hr Heating, Liquid Propane, 1/2 in Gas Connection, 40 gal Tank, Piezo Pushbutton Ignition, Atmospheric Vent, 3 in and 4 in Vent Size, 42 gph at 90 deg F Rise Recovery, 0.66 Energy Factor, 3/4 in Water Connection, 150 psi, Tall, Ultra Low NOx: No, 20 in Dia x 61-3/4 in H
- Intelligent control logic - The internal microprocessor provides enhanced operating parameters and tighter differentials for precise sensing and faster heating response to optimize performance
- Uses a thermopile to generate the power needed to operate the electronic gas control without requiring an external power source
- The electronic gas control incorporates and LED status indicator that monitors system operation and service diagnostics
- Green Choice® gas burner - Patented eco-friendly burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements of less than 40 ng/J
- Self-cleaning dip tube - Reduces lime and sediment buildup and maximizes hot water output
- Made from long-lasting PEX cross-linked polymer
- Coregard™ anode rod - Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rod
- Push button piezo igniter makes lighting the pilot fast and easy with one hand
- Heat trap nipple - Factory installed for faster installation
- Blue Diamond® glass coating - Provides superior corrosion resistance compared to the industry standard glass lining
- Enhanced-flow brass drain valve - Our residential water heaters have a solid brass, tamper resistant, enhanced flow, ball type, drain valve
- Uses a standard female hose fitting that allows for fast and easy draining during maintenance
- Designed for easy operation, this valve includes an integral screwdriver slot that features a 1/4 turn (open/close) radius, which not only permits full straight-through water flow but also a quick and positive shut off
- High uniform energy factor - Eco-Friendly non-CFC foam insulation, external heat traps and specially designed combustion chamber combine to produce a high UEF for maximum savings on operating costs
- All models approved for installation from sea level to 10100 ft elevation
| Recovery Rate | 42 gph at 90 deg F Rise |
|---|---|
| Series | GS6 40 BCT |
| Ultra Low NOx | No |
| Vent Type | Atmospheric |
| Water Connection | 3/4 in |
| Tank Capacity | 40 gal |
| Pressure Rating | 150 psi |
| Tall or Short | Tall |
| Vent Size | 3 and 4 in |
| Energy Factor | 0.66 |
| Gas Connection | 1/2 in |
| Ignition Type | Piezo Pushbutton |
| Fuel Type | Liquid Propane |
| Dimensions | 20 in Dia x 61-3/4 in H |
| Heating Capacity | 36000 Btu/hr |
| Brand | State |
| Gallons | 40 Gallon |
