State Industries 100275798
40 GAL DV MOBILE HOME SEALED
SKU
635326

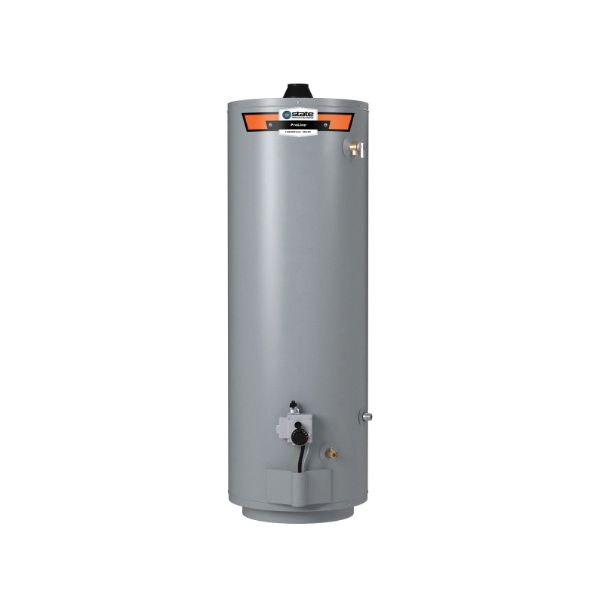

State Industries ProLine® Gas Water Heater, Series: GS6 40 MDV, 32000 Btu/hr Heating, Natural Gas, 1/2 in FNPT Gas Connection, 40 gal Tank, Piezo Pushbutton Ignition, Home Direct Vent, 3 in Vent Size, 33 gph at 90 deg F Rise Recovery, 0.62 Energy Factor, 3/4 in Water Connection, 150 psi, Tall, Ultra Low NOx: No, 21 in Dia x 61-3/4 in H
- Gas control convertible for natural and propane gas - For flexibility to meet the varying needs of manufactured housing installations
- Side-mounted 3/4 in cold water inlet for ease of installation when cold water supply originates below the structure
- Top mounted 3/4 in hot water outlet
- Direct vent models package with bottom intake air vent to draw all combustion make-up air from outside the structure
- Green Choice® gas burner - Patented eco-friendly design reduces NOx emissions by up to 33% and complies with Low- NOx emission requirements of less than 40 ng/J
- Coregard™ anode rod have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rod
- Enhanced-flow brass drain valve - Our residential water heaters have a solid brass, tamper resistant, enhanced flow, ball type, drain valve
- Uses a standard female hose fitting that allows for fast and easy draining during maintenance
- Designed for easy operation, this valve includes an integral screwdriver slot that features a 1/4 turn (open/close) radius, which not only permits full straight-through water flow but also a quick and positive shut off
- Blue Diamond® glass coating - Provides superior corrosion resistance compared to the industry standard glass lining
- All models approved fro installation from sea level to 5400 ft elevation
Recovery Rate | 33 gph at 90 deg F Rise |
---|---|
Series | GS6 40 MDV |
Ultra Low NOx | No |
Vent Type | Home Direct |
Water Connection | 3/4 in |
Tank Capacity | 40 gal |
Pressure Rating | 150 psi |
Tall or Short | Tall |
Vent Size | 3 in |
Energy Factor | 0.62 |
Gas Connection | 1/2 in FNPT |
Ignition Type | Piezo Pushbutton |
Fuel Type | Natural Gas |
Dimensions | 21 in Dia x 61-3/4 in H |
Heating Capacity | 32000 Btu/hr |
Brand | State |
