Guy Gray 82414
FRIB12ABPCP FIRERATD IMB CRIMP
SKU
654304

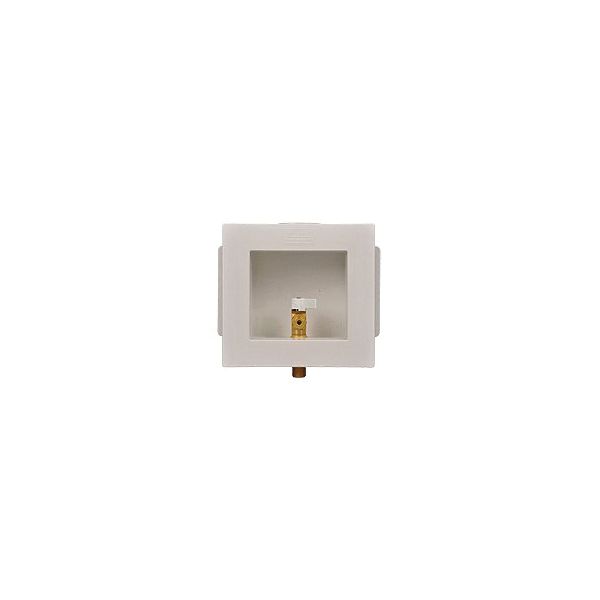

Guy Gray™ Ice Maker Outlet Box, Fire Rated, Plastic, 8-5/16 in W x 3-1/8 in D x 7-7/8 in H, Domestic
- Molded in test cap for testing of DWV drain system-test cap will not fall down the drain
- Valves feature white handle and checkmark stamping
- Intumescent pad attached to back of outlet box
- Snap-on frame accommodates up to 1" drywall and is interchangeable with all FR-12 fire-rated plastic outlet boxes
- Simple installation-just nail or screw to stud
- One face plate fits washer, ice maker, gas, AAV and auxiliary drain outlet boxes
- 6 in W x 6 in H x 3-1/8 in D rough opening
- Preloaded nails for right or left stud bay installation
- 1hr and 2hr rated
- Made of high temperature resin
- No special wrapping or sheet rock fabrication needed
- 1/2 in PEX quarter turn valve
- Reduction of lead in Drinking water Act (Federal Public Law 111-380)
- Contractor pack
- Lead Free
| Material | Plastic |
|---|---|
| Type | Fire Rated |
| Dimensions | 8-5/16 in W x 3-1/8 in D x 7-7/8 in H |
| Domestic/Import | Domestic |
| Brand | Guy Gray |
