Webstone H-80133W
3/4"LF BV,PRESS X F1807PEX
SKU
791382

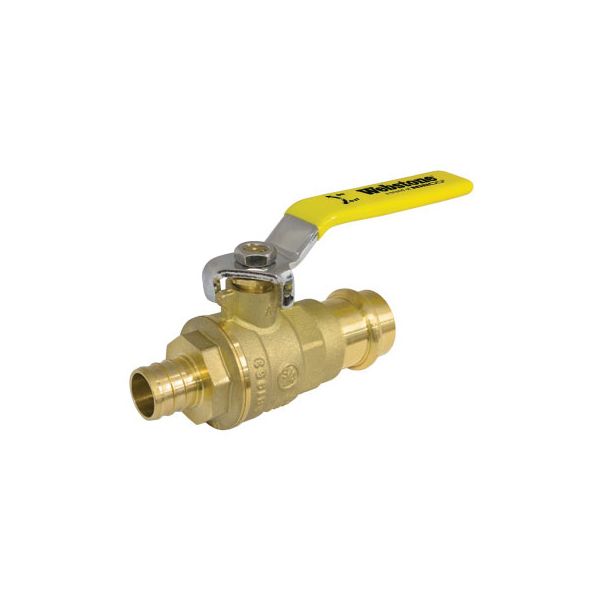

Webstone Ball Valve, Series: 8013, 3/4 in Nominal, Pro-Connect® Press x F1807 PEX, 250 psi, 250 deg F, Full Port, Media: Gas/Oil/Water, Lever Handle Actuator, Brass Ball, 3.81 in Inlet to Outlet Length, 1.92 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, EPDM, Import
- Controls flow with quarter-turn lever handle
- Easily transition from press to PEX
- Saves time
- Replaces components
- Reduces leak paths
- This valve is actuated by a blowout-proof stem
- Brass stem and PTFE seat
- Ball valve with integral spring check saves labor, space, and leak paths
- Adjustable Packing Gland
- Models available to satisfy all state and federal low-lead laws
| Pressure Rating | 250 psi |
|---|---|
| Media | Gas/Oil/Water |
| Series | 8013 |
| End Style | Pro-Connect™ Press x F1807 PEX |
| Trim Material | Brass Stem and PTFE Seat |
| Body Material | Brass |
| Ball Material | Brass |
| Port Type | Full |
| Actuator Type | Lever Handle |
| Temperature Rating | 250 deg F |
| Nominal Size | 3/4 in |
| Inlet to Outlet Length | 3.81 in |
| Domestic/Import | Import |
| Top to Inlet Center | 1.92 in |
| Softgoods Material | EPDM |
| Brand | Webstone |
