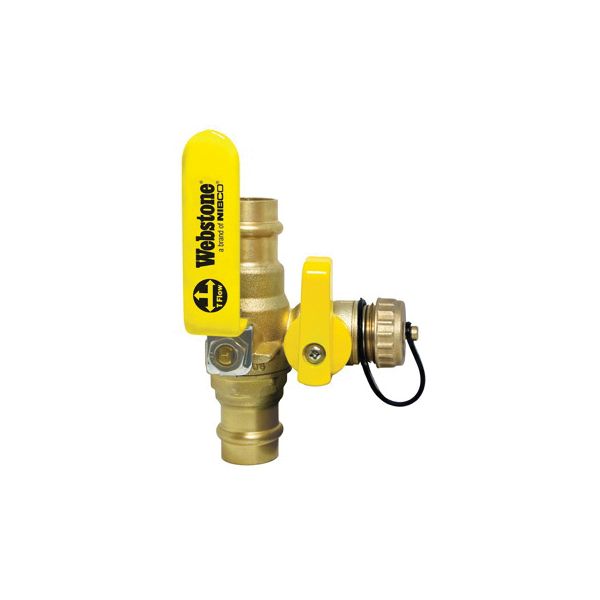

Webstone H-80612W
1/2" PRESS LF BALL DRAIN
SKU
636211
Webstone Pro-Connect Press® Clean Brass® Ball Drain® Ball Valve, Series: Pro-Pal® 8061W, 1/2 in Nominal, Press, 250 psi, 250 deg F, Full Port, Media: Gas/Oil/Water, Reversible Handle Actuator, Polished Chrome Brass Ball, 3-3/4 in Inlet to Outlet Length, 1-15/16 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, EPDM/PTFE, Brass, Import
- Eliminates assembly needed to isolate and drain any portion of a piped system
- Reversible handle for added versatility
- Exclusive adjustable flow path allows for draining from either side of the ball
- Saves 27 minutes
- Replaces 4 components
- Eliminates 3 leak paths
- Brass stem and PTFE seat
| Pressure Rating | 250 psi |
|---|---|
| Media | Gas/Oil/Water |
| Series | Pro-Pal® 8061W |
| End Style | Press |
| Trim Material | Brass Stem and PTFE Seat |
| Body Material | Forged Brass |
| Ball Material | Polished Chrome Brass |
| Color | Brass |
| Port Type | Full |
| Actuator Type | Reversible Handle |
| Temperature Rating | 250 deg F |
| Nominal Size | 1/2 in |
| Inlet to Outlet Length | 3-3/4 in |
| Domestic/Import | Import |
| Top to Inlet Center | 1-15/16 in |
| Softgoods Material | EPDM/PTFE |
| Brand | Webstone |
