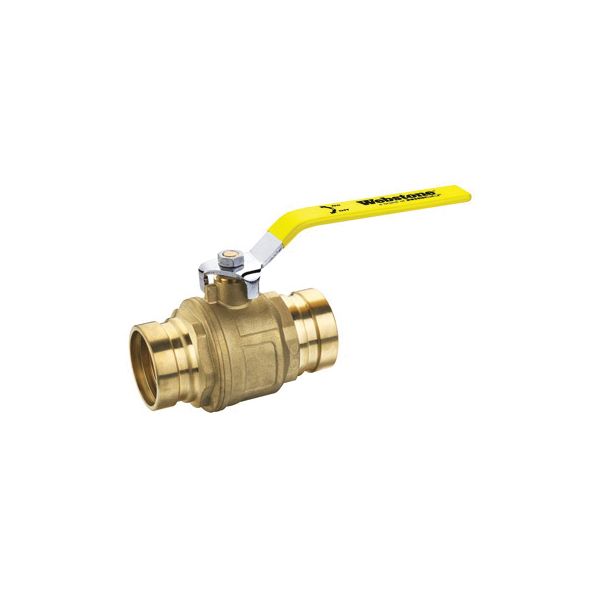

Webstone H-81710W
4"LF PRESS BALL VALVE
SKU
669749
Webstone Pro-Connect Press® Clean Brass® Ball Valve, Series: 8170, 4 in Nominal, Press, 250 psi, 250 deg F, Full Port, Media: Water, Lever Handle Actuator, Stainless Steel Ball, 10 in Inlet to Outlet Length, Forged Brass Body, Stainless Steel/PTFE Trim, EPDM/PTFE, Brass, Import
- Controls flow with quarter-turn lever handle
- This valve is actuated by a blowout-proof stem
- Stainless steel stem and PTFE seat
- Forged DZR Brass Construction
- Double O-ring Press Design
- Compatible with Popular Press XLC Tools
- Adjustable Packing Gland
- Models available to satisfy all state and federal low-lead laws
| Pressure Rating | 250 psi |
|---|---|
| Media | Water |
| Series | 8170 |
| End Style | Press |
| Trim Material | Stainless Steel Stem and PTFE Seat |
| Body Material | Forged Brass |
| Ball Material | Stainless Steel |
| Color | Brass |
| Port Type | Full |
| Actuator Type | Lever Handle |
| Temperature Rating | 250 deg F |
| Nominal Size | 4 in |
| Inlet to Outlet Length | 10 in |
| Domestic/Import | Import |
| Softgoods Material | EPDM/PTFE |
| Brand | Webstone |
