Webstone 74007
2" IP AIR SEPERATOR WEBSTONE
SKU
664423

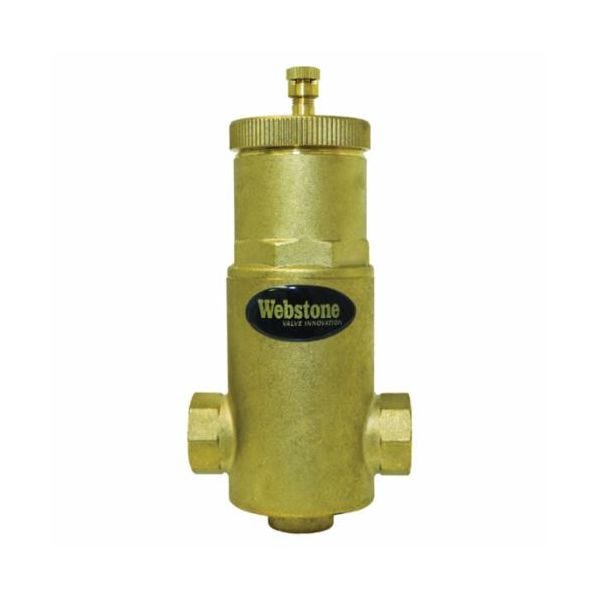

Webstone, 74007, Air Separator, Horizontal, Series: THD-7X00, 2 in Nominal, FNPT Connection, 150 psi CWP Working, 250 deg F, Suitable Media: Glycol Mixture/Oil/Water, 40 gpm Flow Rate, Brass, 8-13/16 in H x 5-1/8 in W Dimensions, Import
- Flow may be directed into either side of the unit
- Ideal for use with Webstone expansion tank Pro service valve
- Uses a unique coalescing medium to capture both micro bubbles and static air from within a hydronic heating system
- Forged brass air separator
- Requires no regular maintenance
- Reduces noise and wear on system components, improves system
- Unique stainless steel coalescing medium captures micro bubbles and static air in a hydronic system
- Minimizes customer call backs and requires no regular maintenance
- Vent head and coalescing medium can be removed for cleaning
- Replacement vent assemblies are available
- Improves system efficiency and operation
- Pin guided float ensures jam-free operation
| Suitable Media | Glycol Mixture/Oil/Water |
|---|---|
| Domestic/Import | Import |
| Nominal Size | 2 in |
| Working Pressure | 150 psi CWP |
| Flow Rate | 40 gpm |
| Dimensions | 8-13/16 in H x 5-1/8 in W |
| Material | Brass |
| Type | Horizontal |
| Connection Type | FNPT |
| Temperature Rating | 250 deg F |
| Series | THD-7X00 |
| Brand | Webstone |
