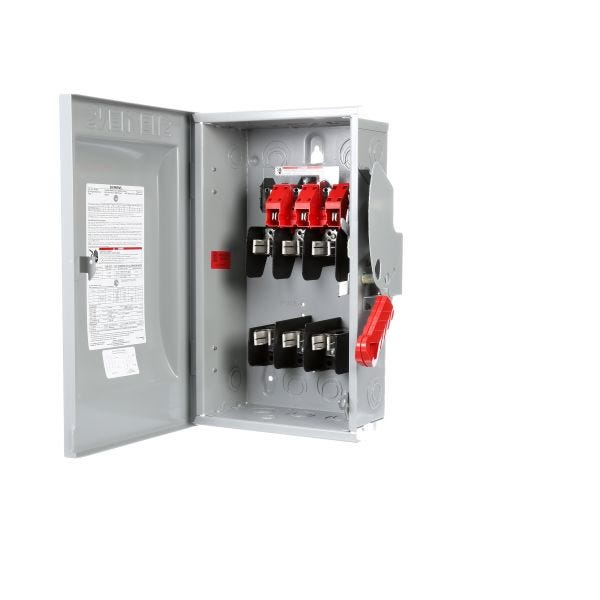

Siemens HF362

60A 600V 3P LV SAFETY SWITCH
SKU
708645
The product cannot be delivered by Truck Shipping

Siemens Safety Switch, Enclosed Fusible Heavy Duty Low Voltage Single Throw, 600 VAC, 60 A, 15 hp, 25 hp, 3 ph, 60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, TPST Contact Form, Non-Insulated Insulation, NEMA 1 Enclosure, 2/3 Point Hole Mounting, Lug Terminal, -20 to 120 deg C, 16.26 in H x 10.19 in W x 10.17 in D Dimensions, Steel

  • Quick-make, quick break operating mechanism that ensures positive operation
  • Visible blade, double break switching action
  • Arc chutes dissipate heat and prolong switch life
  • Highly visible red handle grip designed for hook stick operation
  • Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
  • Center punch provided for field drilling to allow on padlocking
  • Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps
  • Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements
  • Informative door labeling which includes replacement parts list
  • Tangential knockouts through 600 A for easy conduit lineup
  • Side hinged door that opens 180 deg for easier wiring
  • Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
  • Spring reinforced fuse clips that assure reliable contact for cool operation
  • Door latch securely holds door closed and allows cover padlocking
  • Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors
  • Lugs are field convertible to copper body and to a wide variety of compression connectors
  • Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
  • Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
  • Drawn cover for increased rigidity and resistance to abuse
  • Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
More Information
Material Steel
Dimensions 16.26 in H x 10.19 in W x 10.17 in D
Number of Poles 3
Short Circuit Current Rating 200 kA
Insulation Type Non-Insulated
Frequency Rating 60 Hz
Enclosure Type NEMA 1
Phase 3
Mounting Type 2/3 Point Hole
Type Enclosed Fusible Heavy Duty Low Voltage Single Throw
Contact Form TPST
Voltage Rating 600 VAC
Horsepower 15 hp, 25 hp
Temperature Rating -20 to 120 deg C
Amperage Rating 60 A
Number of Wires 3
Terminal Type Lug
Brand Siemens Ind
