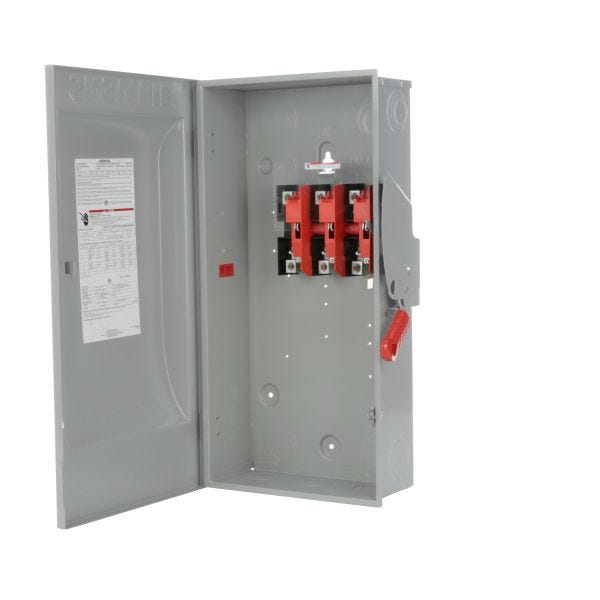

Siemens HNF364

200A 600V 3P LV SAFETY SWITCH
SKU
708652
The product cannot be delivered by Truck Shipping

Siemens Safety Switch, Type VBII Enclosed Heavy Duty Low Voltage Non-Fusible Single Throw, 600 VAC, 200 A, 150 hp, 3 ph, 60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, TPST Contact Form, Non-Insulated Insulation, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 29.9 in H x 15.39 in W x 12.33 in D Dimensions, Steel

  • Quick-make, quick break operating mechanism that ensures positive operation
  • Visible blade, double break switching action
  • Arc chutes dissipate heat and prolong switch life
  • Highly visible red handle grip designed for hook stick operation
  • Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
  • Center punch provided for field drilling to allow on padlocking
  • Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps
  • Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements
  • Informative door labeling which includes replacement parts list
  • Tangential knockouts through 600 A for easy conduit lineup
  • Side hinged door that opens 180 deg for easier wiring
  • Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
  • Spring reinforced fuse clips that assure reliable contact for cool operation
  • Door latch securely holds door closed and allows cover padlocking
  • Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors
  • Lugs are field convertible to copper body and to a wide variety of compression connectors
  • Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
  • Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
  • Drawn cover for increased rigidity and resistance to abuse
  • Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
More Information
Material Steel
Dimensions 29.9 in H x 15.39 in W x 12.33 in D
Number of Poles 3
Short Circuit Current Rating 200 kA
Insulation Type Non-Insulated
Frequency Rating 60 Hz
Enclosure Type NEMA 1
Phase 3
Mounting Type Surface
Type Type VBII Enclosed Heavy Duty Low Voltage Non-Fusible Single Throw
Contact Form TPST
Voltage Rating 600 VAC
Horsepower 150 hp
Temperature Rating -29 to 85 deg C
Amperage Rating 200 A
Number of Wires 3
Terminal Type Lug
Brand Siemens Ind
