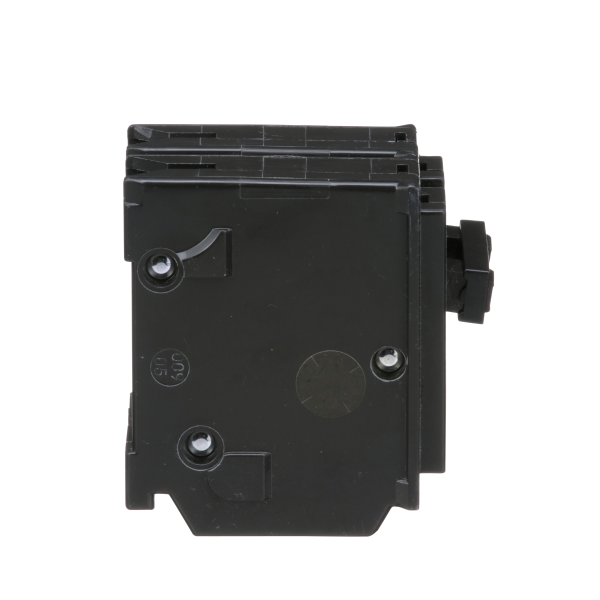

Schneider Electric HOM230
SQ D HOMELINE 120/240 DBL 30A
SKU
580716
Square D™ Homeline™ Miniature Circuit Breaker, Standard, 120/240 VAC, 30 A, 50/60 Hz, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Screw, 14 to 8 AWG Wire, Plug-In Mount, 40 deg C, 2.98 in L x 2 in W x 3.13 in H
- Market leading circuit protection, designed for superior safety quality and reliability
- Multiple applications Homeline™ circuit breakers offer a full range of amperage, poles and advanced function devices that offer superior arc fault, combination arc fault (CAFI) and ground fault (Class A, GFCI) and dual function (CAFI and GFCI) protection
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- For heating, air conditioning and refrigeration
- 14 to 8 AWG Al/Cu wire
- Screw clamp terminal connections
| Phase | 1 ph |
|---|---|
| Wire Size | 14 to 8 AWG |
| Type | Standard |
| Frequency Rating | 50/60 Hz |
| Temperature Rating | 40 deg C |
| Number of Poles | 2 |
| Connection Type | Screw |
| Mounting Type | Plug-In |
| Dimensions | 2.98 in L x 2 in W x 3.13 in H |
| Interrupt Rating | 10 kA |
| Amperage Rating | 30 A |
| Trip Type | Thermal/Magnetic |
| Voltage Rating | 120/240 VAC |
| Brand | Square D Co |
