Honeywell Home V2042HSL10
VALVE BODYHONEYWELL
SKU
486541

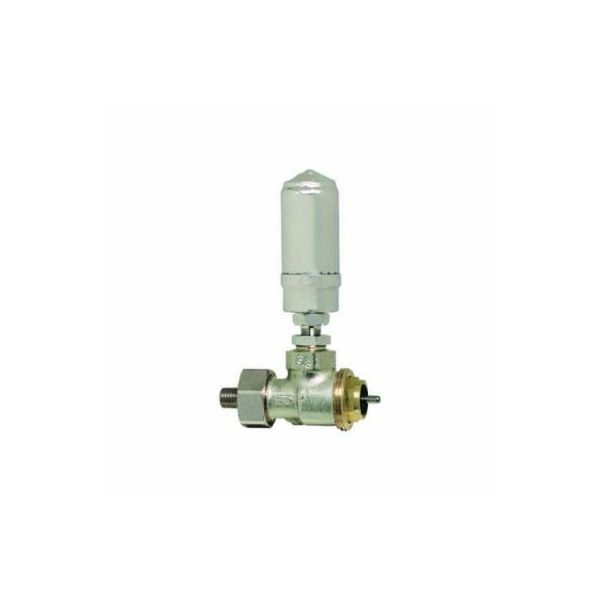

Honeywell Home Thermostatic Radiator Valve, 1-Pipe Angle Pattern, Series: V2000, 1/8 in Nominal, MNPT x FNPT, 15 psi (Steam), 248 deg F, Media: Steam, Bronze Body, EPDM Cartridge, 1-3/16 x 1-11/16 in, Import
- Continually monitor and adjust room temperature for consistent comfort and relief from under-heating and overheating
- Adjustable balancing cartridge design made from resilient material (EPDM), ensures tight shut-off on steam and hot water systems
- Nickel-plated brass casted body
- Replaceable cartridge for easy service with service tool
- Used with T100 set point and capillary actuators
- No electrical connection required for non-electric actuators
- Normally open without control mounted
- Replaces Y100P1001 thermostatic radiator valve
- With 1/2 in body, 1-1/8 in adapter
- Angle pattern valve body for one pipe steam systems application
- Use VA8200A001 cartridge change tool
| Pressure Rating | 15 psi (Steam) |
|---|---|
| Dimensions | 1-3/16 x 1-11/16 in |
| Media | Steam |
| Series | V2000 |
| End Style | MNPT x FNPT |
| Body Material | Bronze |
| Type | 1-Pipe Angle Pattern |
| Temperature Rating | 248 deg F |
| Nominal Size | 1/8 in |
| Domestic/Import | Import |
| Softgoods Material | EPDM Cartridge |
| Brand | Honeywell |
