Killark OLL-3
1-IN AL LL CONDUIT BODY
SKU
709903

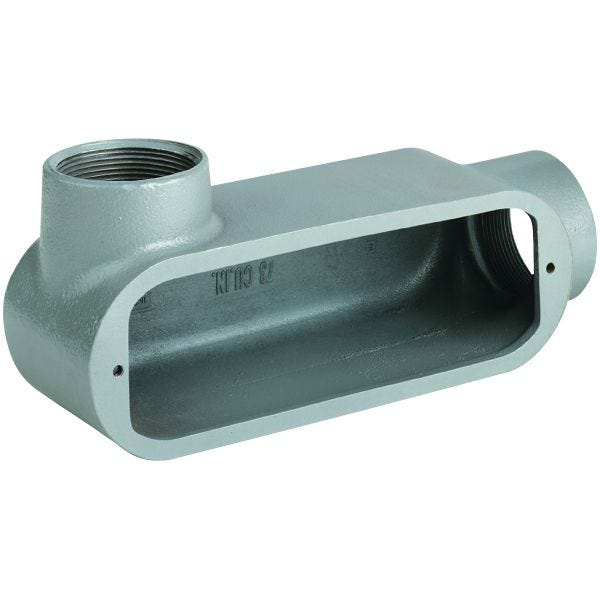

Killark®, OLL-3, Conduit Body, Type LL, Series: O Series, 1 in Hub, 2 Hubs, 12 cu-in Capacity, 5 Form, Thread Connection, Aluminum, Powder Coated, Gray, 6-1/4 in L x 2-9/16 in W x 2 in H Dimensions
- To provide access to conductors for pulling, splicing and maintenance
- Copper free aluminum (less than 4/10 of 1%)
- Tapered threaded hubs (NPT)
- Interchangeable with competitive products
- Stainless steel screws on stamped and cast covers
- Electrostatically applied powder coated finish
- Malleable iron suitable for use in concrete
- Suitable for wet locations when used with gasketed covers
- Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
| Series | O Series |
|---|---|
| Number of Hubs | 2 |
| Connection Type | Thread |
| Type | Type LL |
| Color | Gray |
| Dimensions | 6-1/4 in L x 2-9/16 in W x 2 in H |
| Form | 5 |
| Finish | Powder Coated |
| Capacity | 12 cu-in |
| Hub Size | 1 in |
| Material | Aluminum |
| Brand | Killark |
| Conduit Fittings | Conduit Bodies |
