NSI IPL3/0-4

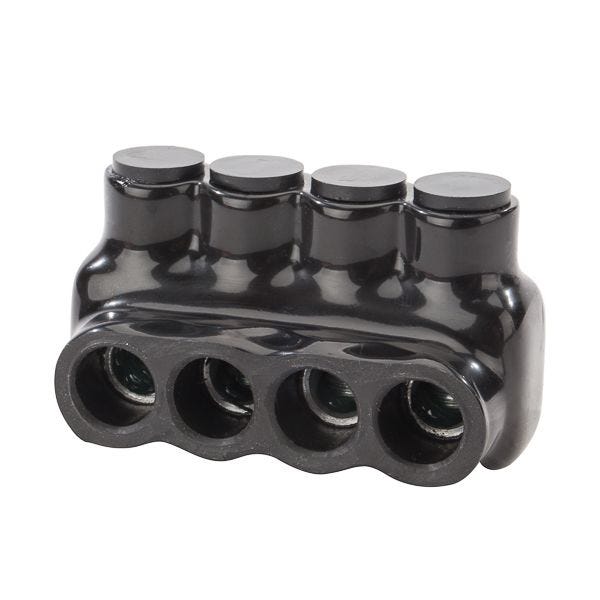

NSI Polaris™ Insulated Multi-Tap Connector, Single Sided Entry, Series: IPL, Aluminum/Copper Conductor, 6 to 3/0 AWG Conductor, 600 VAC, 1 Pole, 4 Conductor, Class B and C Wire Type, 5/16 in Hex, -45 to 90 deg C, Plastisol, Black, 3.41 in L x 1.6 in W x 1.8 in H

• Insulated with dielectric strength plastisol for tough mechanical protection
• Molded for precise fit and supplied with removable access plugs over the hex screws
• Eliminates the need for cover and taping
• Will not support combustion
• Not recommended for fine stranded, flexible wire
• Dual rated multi-conductor connector for use with copper and/or aluminum cables
• One-Side Wire Entry, Form secure connections between 4 conductors quickly using the single-side entry ports sized for wires between 3/0 and 6 AWG
• Ergonomic Design, Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
• Removable Plugs, Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
• Pre-filled Oxide Inhibitor, All 4 single-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
• Professional Performance, The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance
