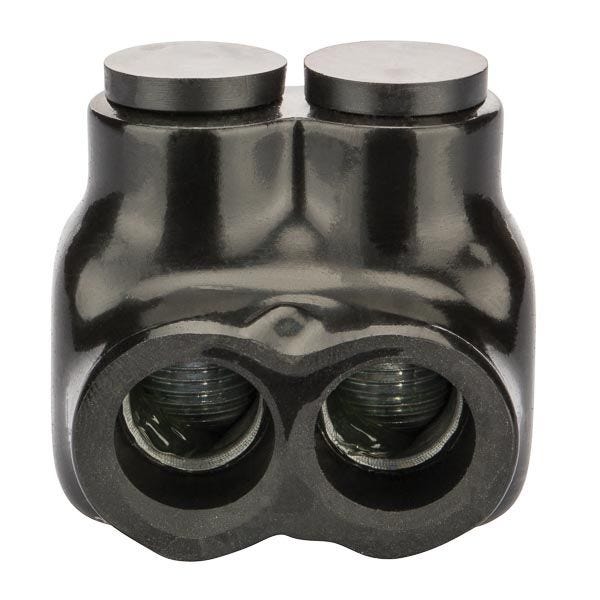

NSI Polaris™ Insulated Multi-Tap Connector, Double Sided Entry, Series: IT Series, Aluminum/Copper Conductor, 6 to 3/0 AWG Conductor, 600 VAC, 1 Pole, 2 Conductor, Class B and C Wire Type, 1/4 in Hex, -45 to 90 deg C, Plastisol, Black, 1.84 in L x 1.75 in W x 1.87 in H
- Insulated tap connectors are suitable for connecting two wires
- Will not support combustion
- Not recommended for fine stranded, flexible wire
- Available in two styles with wires being connected from the same side of the connector or opposite sides of the connector
- Dual rated for use with aluminum and copper cables
- Single-Side Wire Entry, Form secure connections between 2 conductors quickly using the single-sided entry ports sized for wires between 3/0 and 6 AWG
- Ergonomic Design, Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
- Removable Plugs, Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
- Pre-filled Oxide Inhibitor, Both single-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
- Professional Performance, The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance
| Temperature Rating | -45 to 90 deg C |
|---|---|
| Dimensions | 1.84 in L x 1.75 in W x 1.87 in H |
| Specifications | 1 Pole, 2 Conductor, Class B and C Wire Type, 1/4 in Hex |
| Conductor Size | 6 to 3/0 AWG |
| Voltage Rating | 600 VAC |
| Conductor Type | Aluminum/Copper |
| Series | IT Series |
| Material | Plastisol |
| Type | Double Sided Entry |
| Finish | Black |
| Brand | NSI Ind |
