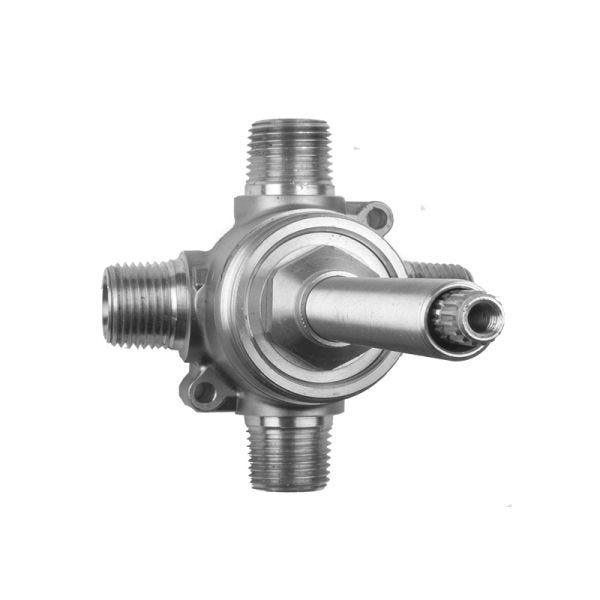

Jaclo J-20686
*2-WAY DIVERTER W/SHUT-OFF
SKU
659364
Jaclo® Diverter Valve Volume Control, Contemporary/Modren, 1/2 in MNPT Inlet Connection, 1/2 in MNPT Outlet, 2 Ways, 60 psi, 130 to 165 deg F, 12 gpm, Solid Brass Body, 3-9/16 in L x 3-9/16 in W x 7-7/16 in H, Domestic
- J-20686 2-way diverter consists of inlet water and two outlets
- Valve has built-in volume control
- Only one device on at a time
- For example showerhead or handshower
- Water flows to C port when handle is at 9:00
- Water flows to B port when handle is at 3:00
- Water is off when handle is at 12:00
- 5 in long stem and escutcheon nipple for deep wall installations can be cut to length
- Works well with low water pressure
| Inlet Connection | 1/2 in MNPT |
|---|---|
| Temperature Rating | 130 to 165 deg F |
| Outlet Connection | 1/2 in MNPT |
| Body Material | Solid Brass |
| Number of Ways | 2 |
| Dimensions | 3-9/16 in L x 3-9/16 in W x 7-7/16 in H |
| Type | Contemporary/Modren |
| Domestic/Import | Domestic |
| Pressure Rating | 60 psi |
| Flow Rate | 12 gpm |
| Brand | Jaclo |
