Smith 1800Y06

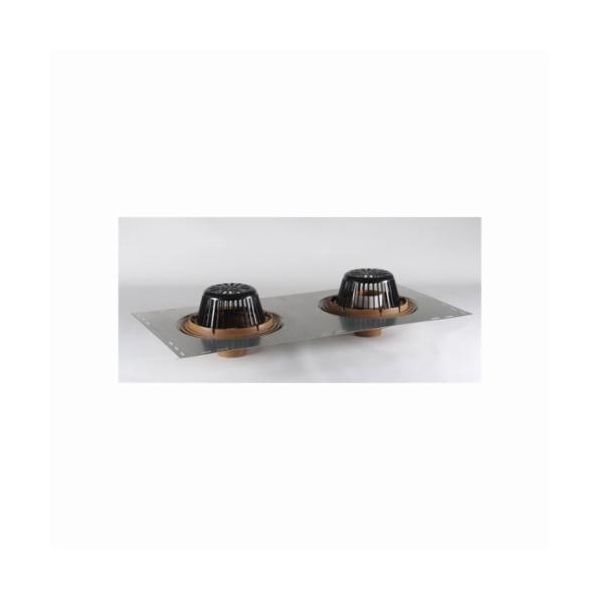

Smith® Roof and Overflow Drain, Series: 1800, 6 in Outlet, No-Hub Connection, Cast Iron Drain, 48 in OAL x 24 in OAW Dimensions

• Eliminates need for underdeck clamp
• Roof drain installation can be performed from the top of the roof deck
• Requires only one rectangular roof penetration
• Recesses the drains slightly to prevent water build-up at the base of the drains
• Drains can be preassembled to deck plate and then put in place
• Drains and deck plate are securely fastened in place
• Duco cast iron bodies with combined flashing clamp and gravel stop for roof drain and combined flashing clamp and gravel stop with 3-1/2 in high internal water dam standpipe for overflow drain polyethylene domes
• 102.5 sq-in free area
• Note: stated flow rates for roof drains are based on particular test piping configurations and dimensions
• Installed roof drain flow rates cannot be stated unless the attached piping configuration is known and the effects of the drainage calculated
• This dimension to internal stop of speed-set gasket
