BURNDY K21A36U2
THREE:2 STR-600 DUAL
SKU
805854

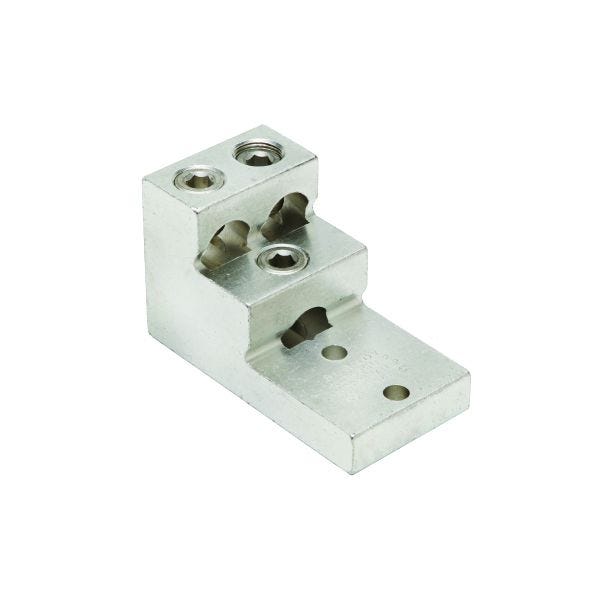

BURNDY® Mechanical Bolted Lug and Terminal, Dual Rated Universal, Series: K21A-U, Copper/Stranded Aluminum Conductor, 2 AWG to 600 kcmil Conductor, 3/8 in Stud, 2 Bolt Holes, 2.31 in W x 0.75 in THK Tongue, Straight Tongue, Specifications: (3) Hex Screw, 1.38 in Mounting Hole Spacing, 3-Conductor, 194 deg F, Aluminum, Electro-Zinc Plated, 4.91 in L x 2.5 in W x 3.03 in H Dimensions
- Dual rated panelboard lugs are constructed from high strength extruded aluminum alloy and electro tin plated to provide low contact resistance
| Temperature Rating | 194 deg F |
|---|---|
| Dimensions | 4.91 in L x 2.5 in W x 3.03 in H |
| Specifications | (3) Hex Screw, 1.38 in Mounting Hole Spacing, 3-Conductor |
| Conductor Size | 2 AWG to 600 kcmil |
| Stud Size | 3/8 in |
| Conductor Type | Copper/Stranded Aluminum |
| Series | K21A-U |
| Tongue Size | 2.31 in W x 0.75 in THK |
| Tongue Type | Straight |
| Material | Aluminum |
| Number of Bolt Holes | 2 |
| Type | Dual Rated Universal |
| Finish | Electro-Zinc Plated |
| Brand | Burndy LLC |
