BURNDY K2A31U
TWO:4STR-350 DUAL RATED
SKU
805860

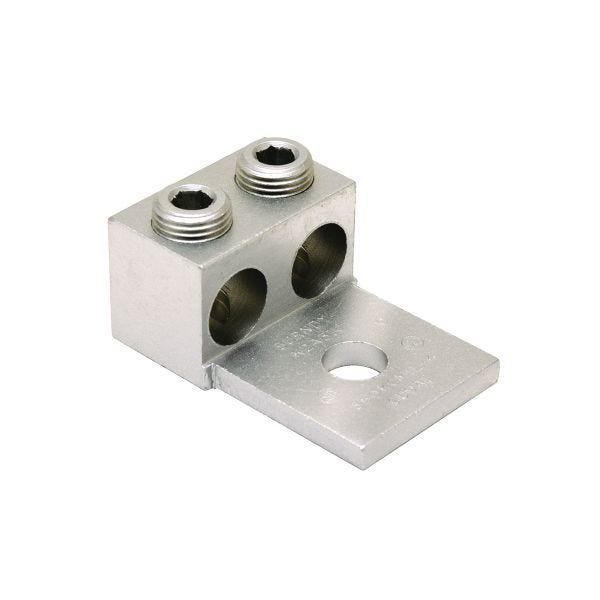

BURNDY® Mechanical Bolted Lug and Terminal, Dual Rated Universal, Series: K2A-U, Aluminum/Stranded Copper Conductor, 6 AWG to 350 kcmil Conductor, 1/2 in Stud, 1 Bolt Hole, 1.94 in W x 0.25 in THK Tongue, Straight Tongue, Specifications: 1.25 in H x 1.94 in W Collar, (2) Hex Screw, 275 in-lb Installation Torque, 2-Conductor, 194 deg F, Aluminum, Electro-Zinc Plated, 2.88 in L x 1.25 in H Dimensions
- Dual rated panelboard lugs are constructed from high strength extruded aluminum alloy and electro tin plated to provide low contact resistance
- 275 in-lb installation torque
| Temperature Rating | 194 deg F |
|---|---|
| Dimensions | 2.88 in L x 1.25 in H |
| Specifications | 1.25 in H x 1.94 in W Collar, (2) Hex Screw, 275 in-lb Installation Torque, 2-Conductor |
| Conductor Size | 6 AWG to 350 kcmil |
| Stud Size | 1/2 in |
| Conductor Type | Aluminum/Stranded Copper |
| Series | K2A-U |
| Tongue Size | 1.94 in W x 0.25 in THK |
| Tongue Type | Straight |
| Material | Aluminum |
| Number of Bolt Holes | 1 |
| Type | Dual Rated Universal |
| Finish | Electro-Zinc Plated |
| Brand | Burndy LLC |
