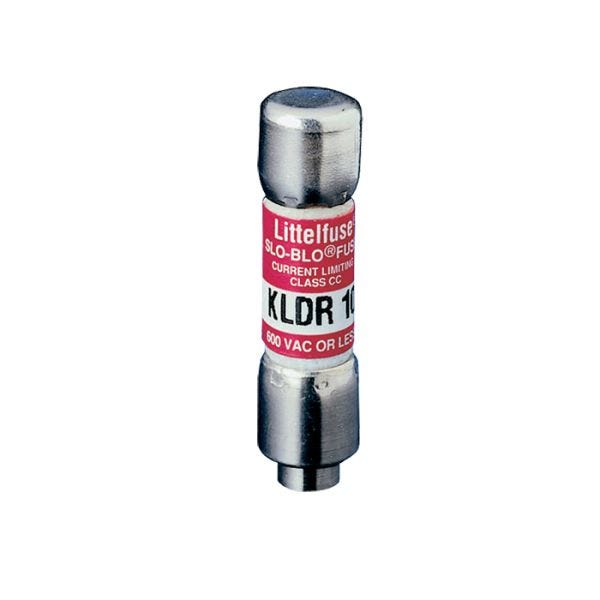

Littelfuse KLDR.125TXP
1/8A 600V CLASS CC FUSE
SKU
702785
Littelfuse® POWR-GARD® Time Delay Fuse, Current Limiting, Series: KLDR, Non-Indicating, Rejection, 0.125 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: CC, 12 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Melamine, 0.41 in Dia x 1.5 in L Body
- Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
- Extremely current limiting reduces damage caused by heating and magnetic effects of short circuit currents
- 200 kA at 600 VAC, 20 kA at 300 VDC interrupt rating
- Nickel plated bronze cap
- 12 sec minimum and 4 min maximum at 200%, 1 hr maximum at 135%, 15 min minimum at 110%
| Class | CC |
|---|---|
| Body Size | 0.41 in Dia x 1.5 in L |
| Material | Melamine |
| Response Time | 12 s |
| Series | KLDR |
| Voltage Rating | 600 VAC/300 VDC |
| Indicating/Non-Indicating | Non-Indicating |
| Mounting Type | Holder |
| Terminal Type | Ferrule |
| Type | Current Limiting |
| Body Type | Cartridge |
| Amperage Rating | 0.125 A |
| Rejection/Non-Rejection | Rejection |
| Interrupt Rating | 20/200 kA |
| Brand | Littelfuse Inc |
| Class | CC |
