O-Z/Gedney LB-75
42433 MALL LB COND BODY
SKU
707773

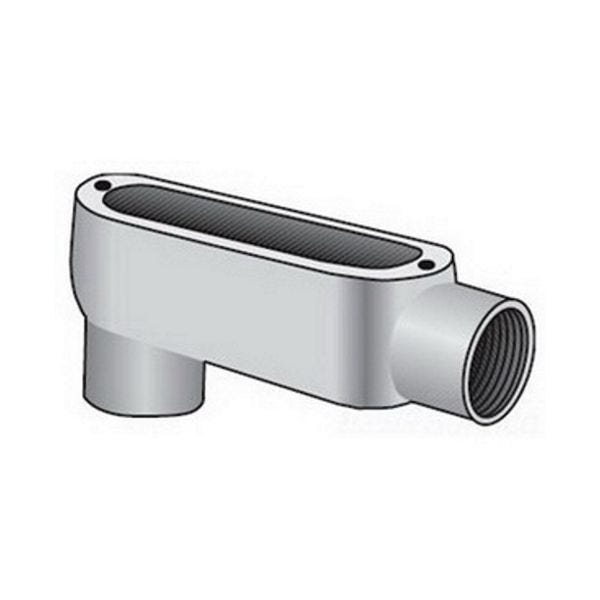

O-Z/Gedney Conduit Outlet Body, Type LB, 2 Hubs, 7.3 cu-in, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Malleable Iron, Aluminum Enamel/Zinc Electroplated, 5-3/8 in L x 1-7/8 in W
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35™ malleable iron UNILETS™ are high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Raintight when an Appleton™ cover and gasket are installed
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Malleable iron suitable for use in concrete
| Number of Hubs | 2 |
|---|---|
| Connection Type | Tapered FNPT |
| Type | Type LB |
| Enclosure | NEMA FB-1 |
| Dimensions | 5-3/8 in L x 1-7/8 in W |
| Mounting Type | Surface |
| Finish | Aluminum Enamel/Zinc Electroplated |
| Capacity | 7.3 cu-in |
| Material | Malleable Iron |
| Brand | Appleton Grp |
| Conduit Fittings | Conduit Bodies |
