Appleton LB27
42433 MALL LB COND BODY
SKU
707774

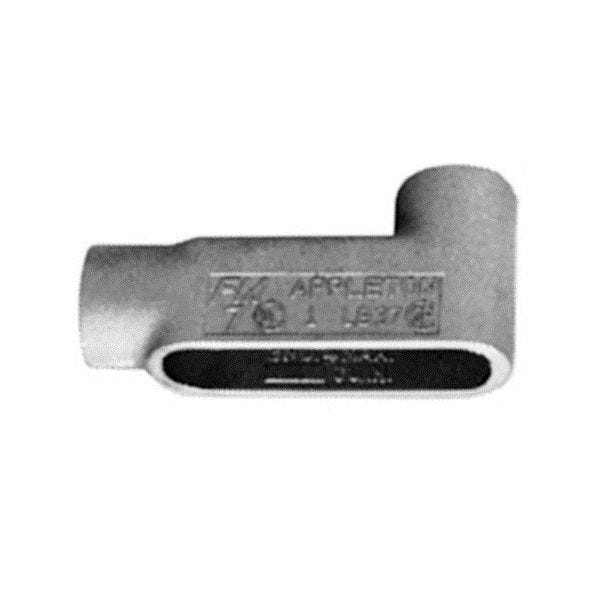

Appleton® UNILETS™ Conduit Outlet Body, Type LB, 3/4 in Hub, 2 Hubs, 7 cu-in, 7, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Grayloy Iron, Triple Coated, Gray, 5.19 in L x 2.44 in W x 2.5 in H
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Wedge-Lok™ form-in-place covers with integral gasket are approved for use in wet locations
- Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
- Unique Wedge-Lok™ clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
- Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
- Cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
| Number of Hubs | 2 |
|---|---|
| Connection Type | Tapered FNPT |
| Type | Type LB |
| Color | Gray |
| Enclosure | NEMA FB-1 |
| Dimensions | 5.19 in L x 2.44 in W x 2.5 in H |
| Mounting Type | Surface |
| Form | 7 |
| Finish | Triple Coated |
| Capacity | 7 cu-in |
| Hub Size | 3/4 in |
| Material | Grayloy Iron |
| Brand | Appleton Grp |
| Conduit Fittings | Conduit Bodies |
