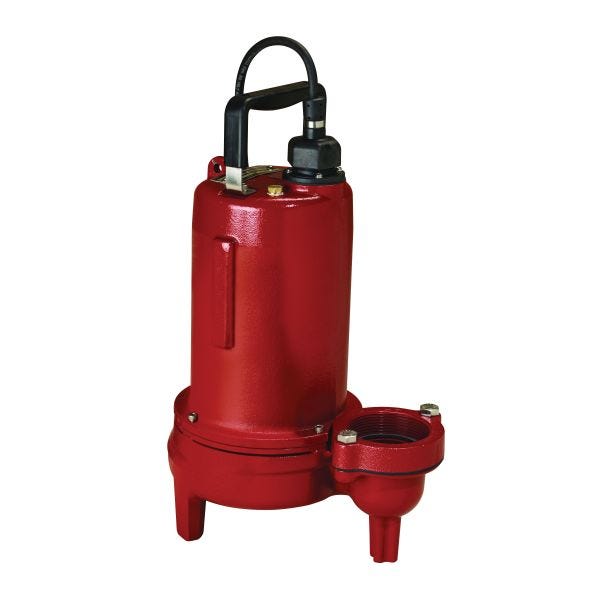

Liberty Pumps LE104M2-2

1HP SEWAGE PUMP,440-480V,3P,2"
SKU
250858
The product cannot be delivered by Truck Shipping

Liberty Pumps®, LE104M2-2, Manual, Series: LE100, 109 gpm Flow Rate, 2 in Flanged Outlet, 39 ft Maximum Head, 1 hp, 440 to 480 VAC, 2.5 A Full Load/9.2 A Locked Rotor, 60 Hz Frequency, 3 ph, 1725 rpm Motor, SEOOW 25 ft Cord, 1 Service Factor, Cast Iron 2-Vane Semi-Open Impeller, Ball Bearing, Cast Iron, 12.5 in W x 18.9 in H Dimensions

  • Rugged two vane, semi-open cast iron impeller
  • Cast iron housing and volute
  • Stainless and brass fasteners
  • Oil filled, hermetically sealed motor
  • Permanently lubricated upper and lower ball bearings
  • Unitized shaft seal
  • Adjustable pumping range
  • Quick connect 25 ft power cord
  • Single float mechanical level control with series plug for manual bypass operation standard on 1-phase automatic models
  • 2 in solid handling
More Information
Outlet Size 2 in Flanged
Series LE100
Horsepower 1 hp
Flow Rate 109 gpm
Motor Speed 1725 rpm
Frequency Rating 60 Hz
Amperage Rating 2.5 A Full Load/9.2 A Locked Rotor
Material Cast Iron
Service Factor 1
Phase 3 ph
Type Manual
Voltage Rating 440 to 480 VAC
Bearing Type Ball
Maximum Head 39 ft
Impeller Type Cast Iron 2-Vane Semi-Open
Dimensions 12.5 in W x 18.9 in H
Cord Type SEOOW 25 ft
Brand Liberty Pumps
