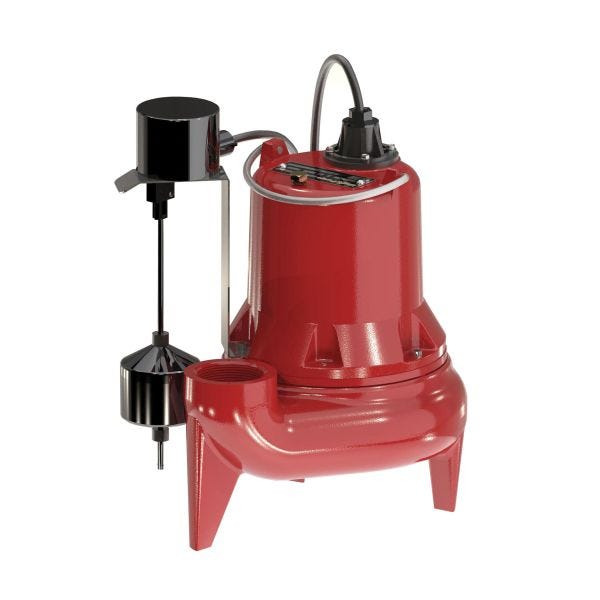

Liberty Pumps LE41AV
4/10 HP 115V 2" SOL W/VERTICAL
SKU
743687
Liberty Pumps®, LE41AV, Automatic, Series: LE40, 130 gpm Flow Rate, 2 in FNPT Outlet, 20 ft Maximum Head, 4/10 hp, 115 VAC, 12 A Full Load/22.5 A Locked Rotor, 60 Hz Frequency, 1 ph, 1725 rpm Motor, SJTW 25 ft Cord, 1 Service Factor, Vortex Impeller, 221 deg F Thermal Overload, Ball Bearing, Cast Iron, 10-3/4 in W x 14 in H Dimensions
- Heavy cast iron construction
- Oil filled, thermally protected motor
- Permanently lubricated ball bearings
- Corrosion-resistant, vortex style impeller made of high temperature engineering polymer
- Stainless steel fasteners and rotor shaft
- Quick connect 10 ft power cord
- Vertical float switch
- 2 in solid handling
- Quick-connect 10 ft power cord
| Outlet Size | 2 in FNPT |
|---|---|
| Series | LE40 |
| Horsepower | 4/10 hp |
| Flow Rate | 130 gpm |
| Motor Speed | 1725 rpm |
| Frequency Rating | 60 Hz |
| Amperage Rating | 12 A Full Load/22.5 A Locked Rotor |
| Material | Cast Iron |
| Service Factor | 1 |
| Phase | 1 ph |
| Type | Automatic |
| Voltage Rating | 115 VAC |
| Bearing Type | Ball |
| Maximum Head | 20 ft |
| Impeller Type | Vortex |
| Temperature Rating | 221 deg F Thermal Overload |
| Dimensions | 10-3/4 in W x 14 in H |
| Cord Type | SJTW 25 ft |
| Brand | Liberty Pumps |
