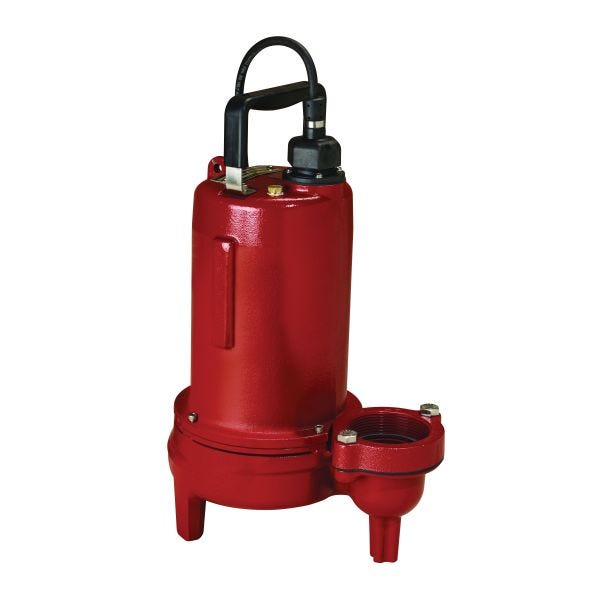

Liberty Pumps LE72M2
*LE72M2 SEWAGE PUMP 2" DISCHG
SKU
333137
Liberty Pumps®, LE72M2, Manual, Series: LE70, 160 gpm Flow Rate, 2 in Flanged Outlet, 28 ft Maximum Head, 3/4 hp, 208 to 230 VAC, 6 A Full Load/13.5 A Locked Rotor, 60 Hz Frequency, 1 ph, 1725 rpm Motor, SJTW 10 ft Cord, Cast Iron 2-Vane Semi-Open Impeller, Rail System Mounting, 221 deg F Thermal Overload, Ball Bearing, Cast Iron, 12.5 in W x 18.9 in H Dimensions
- Rugged two vane, semi-open cast iron impeller
- Cast iron housing and volute
- Stainless and brass fasteners
- 416 stainless steel rotor shaft
- Oil filled, hermetically sealed motor
- Permanently lubricated upper and lower ball bearings
- Unitized shaft seal
- Adjustable pumping range
- Quick connect 10 ft power cord
- Built-in thermal protection on 1-phase models
- Single float mechanical level control with series plug for manual bypass operation standard on 1-phase automatic models
- 2 in solid handling
| Outlet Size | 2 in Flanged |
|---|---|
| Series | LE70 |
| Horsepower | 3/4 hp |
| Flow Rate | 160 gpm |
| Motor Speed | 1725 rpm |
| Frequency Rating | 60 Hz |
| Amperage Rating | 6 A Full Load/13.5 A Locked Rotor |
| Material | Cast Iron |
| Phase | 1 ph |
| Type | Manual |
| Voltage Rating | 208 to 230 VAC |
| Mounting Type | Rail System |
| Bearing Type | Ball |
| Maximum Head | 28 ft |
| Impeller Type | Cast Iron 2-Vane Semi-Open |
| Temperature Rating | 221 deg F Thermal Overload |
| Dimensions | 12.5 in W x 18.9 in H |
| Cord Type | SJTW 10 ft |
| Brand | Liberty Pumps |
