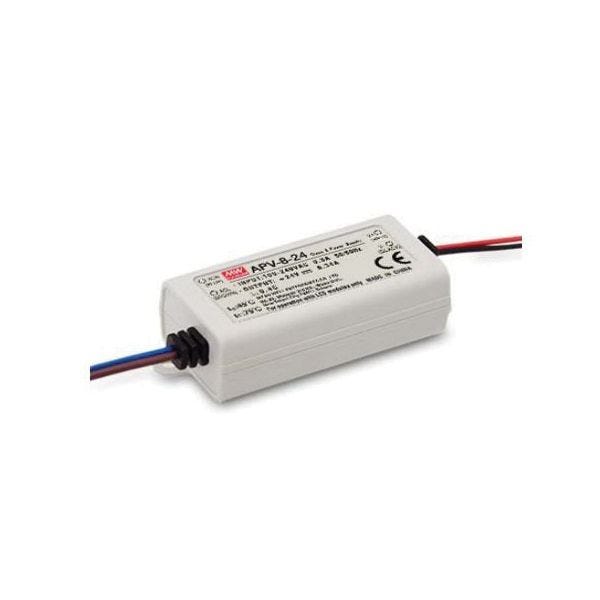

American Lighting LED-DR8-24
24VDC 8W 100-240V INPUT DRIVER
SKU
864092
American Lighting LED Driver, Class 2 Constant Voltage Hardwire, Series: LED-DR 60W, 100 to 240 VAC Input, 24 VDC Output, 8 to 60 W Power, 1.25 A, Power Factor: >=0.9/>=0.95, 2-7/8 in Length, 1-3/16 in Width, 15/16 in Height, -22 to 158 deg F, Plastic, White
- For LED lighting
- Non-dimmable on primary side, utilize secondary side for Trulux™ controls or PWM dimming
- Universal AC input/full range
- Short circuit, over voltage and overload protection
- Fully isolated plastic case, encapsulated with IP42 level ingress protection
- Input via 5 in 18 AWG conductor
- Output via 5 in 20 AWG conductor
- Compatible with ENCL-11 power supply enclosure
- Class 2 double insulation barrier for surge protection (no ground protection)
- >=0.95 at 115 VAC, >=0.9 at 230 VAC power factor
| Temperature Rating | -22 to 158 deg F |
|---|---|
| Material | Plastic |
| Width | 1-3/16 in |
| Color | White |
| Amperage Rating | 1.25 A |
| Power Rating | 8 to 60 W |
| Power Factor | >=0.9/>=0.95 |
| Input Voltage | 100 to 240 VAC |
| Height | 15/16 in |
| Type | Class 2 Constant Voltage Hardwire |
| Output Voltage | 24 VDC |
| Length | 2-7/8 in |
| Series | LED-DR 60W |
| Brand | American Lighting |
