Legend 101-063NL

LF 1/2" IPS FP 600# BV
SKU
621871
The product cannot be delivered by Truck Shipping

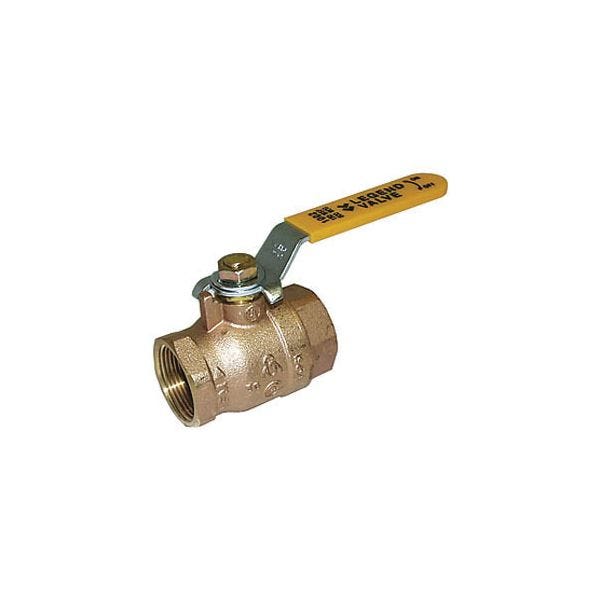

LEGEND Ball Valve, Lead Free, Series: T-1002NL, 1/2 in Nominal, FNPT, 600 psi CWP, Full Port, Polished Chrome Forged Brass Ball, 2.01 in Inlet to Outlet Length, 1.54 in Top to Inlet Center, Forged Brass Body, Forged Brass Stem and PTFE Seat Trim, Import

  • Lead free design is suitable for all no-lead potable water installations, in full compliance of all Lead free plumbing laws
  • Bottom loaded, blow-out proof stem with PTFE packing gland and forged brass packing nut
  • Durable PTFE seats
  • Self-cleaning forged brass ball is chrome plated, to resist scale build-up
  • 150 psi steam working pressure
More Information
Port Type Full
End Style FNPT
Ball Material Polished Chrome Forged Brass
Domestic/Import Import
Inlet to Outlet Length 2.01 in
Top to Inlet Center 1.54 in
Pressure Rating 600 psi CWP
Body Material Forged Brass
Nominal Size 1/2 in
Series T-1002NL
Trim Material Forged Brass Stem and PTFE Seat
Brand Legend
Use Threaded
Type Ball Valve
Size 1/2"
