Legend 101-533NL

SKU
645235

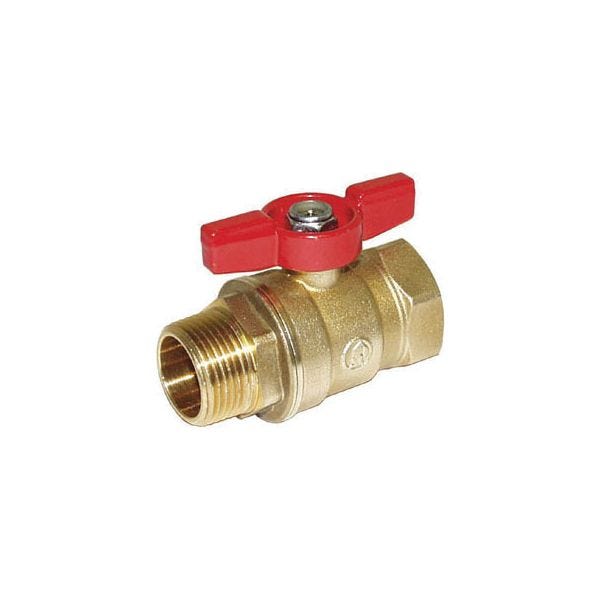

LEGEND Ball Valve, Lead Free, Series: T-900MxF-TNL, 1/2 in Nominal, FNPT x MNPT, 600 psi CWP, Large Port, Media: Natural/Manufactured/Mixed LP Gas/Air mixtures, T-Handle Actuator, Polished Chrome Forged Brass Ball, 2-1/2 in Inlet to Outlet Length, 1.42 in Top to Inlet Center, Forged Brass Body, Polished Chrome Forged Brass Stem and TFM PTFE Seat Trim, 2.01 in H, Import

  • Lead free design is suitable for all no-lead potable water installations, in full compliance of all Lead free plumbing laws
  • Durable forged brass construction
  • Space-saving male-by-female end connections are ideal for confined piping installations
  • Bottom loaded Blow-out proof stem is a maintenance-free, dual O-Ring seal design, eliminating the need to tighten a packing-nut
  • Improved 3M Dyneon® TFM PTFE seats and thrust washers provide enhanced sealing and Isolation between the body and ball-stem-handle rotating assembly
  • 125 psi working steam pressure
More Information
Brand Legend
Manufacture Name Legend
Inlet to Outlet Length (in) 2-1/2
Actuator Type T-Handle
Brand Name Legend
Trim Material Polished Chrome Forged Brass Stem and TFM PTFE Seat
Volume (cu-in) 1312.08
Dimensions 2.01 in H
Domestic/Import Import
Nominal Size (in) 1/2
Pressure Rating 600 psi CWP
Port Type Large
End Style FNPT x MNPT
Length (in) 1.9
Tax Class Name taxable goods
Height (in) 0.9
Width (in) 1.7
Weight (lb) 0.4
Item Condition new condition
Product Truck Shipping Flag no
Country of Manufacture United States
Country USA
Body Material Forged Brass
Series T-900MxF-TNL
Top to Inlet Center (in) 1.42
Media Natural/Manufactured/Mixed LP Gas/Air mixtures
