LEGEND 102-212
3/8FLX1/2M GAS BALL VALVE38FLX12MGBV
SKU
462295

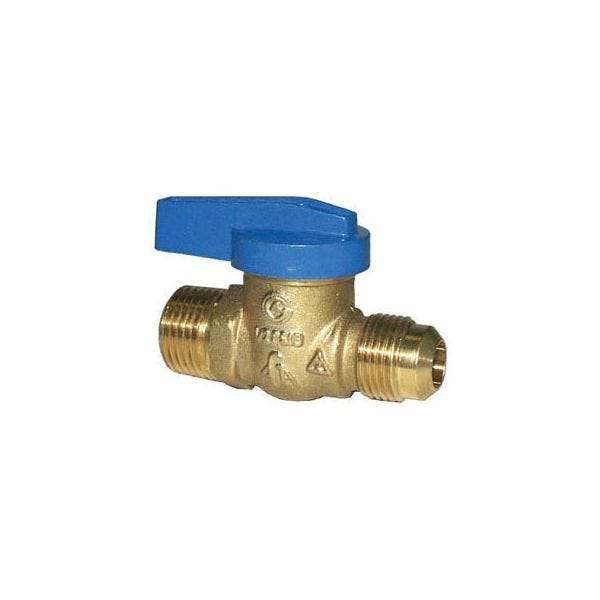

LEGEND Blue Top™ Gas Ball Valve, Series: T-3000, 3/8 x 1/2 in Nominal, Flare x MNPT End Style, 175 psi CWP Pressure, Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures, Polished Chrome Forged Brass Ball, 2.41 in Inlet to Outlet Length, Forged Brass Body, Forged Brass Stem and Nitrile Rubber Seat Trim, 1.78 in H, Import
- Patented 1-piece forged brass body eliminates the possibility of seam leaks common to two-piece body designs
- Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low or moderate pressure gas applications
- Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks
- The 175 psi pressure rating permits high-pressure air tests, without the grease-seal Blow-out common to plug-type gas cocks
- Not suitable for steam service
| Dimensions | 1.78 in H |
|---|---|
| End Style | Flare x MNPT |
| Media | Natural/Manufactured/Mixed LP Gas/Air Mixtures |
| Ball Material | Polished Chrome Forged Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2.41 in |
| Pressure Rating | 175 psi CWP |
| Body Material | Forged Brass |
| Nominal Size | 3/8 x 1/2 in |
| Series | T-3000 |
| Trim Material | Forged Brass Stem and Nitrile Rubber Seat |
| Brand | Legend |
