LEGEND 116-124

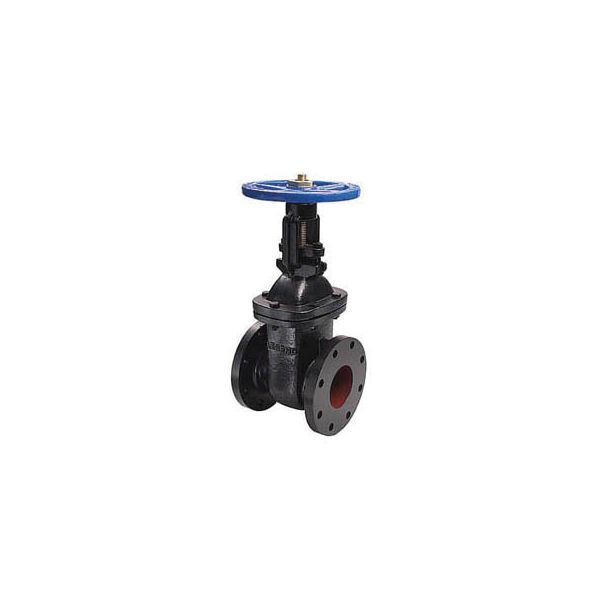

4" MODEL T303 OSY VALVE
SKU
522915
LEGEND Gate Valve, OS and Y, Series: T-303, 4 in Nominal, Flanged End Style, 200 psi CWP Pressure, 125 lb Pressure Class, 450 deg F, Handwheel Actuator, 9.02 in Inlet to Outlet Length, 19.53 in Top to Inlet Center, Cast Iron Body, Forged Brass Trim, Flexible Graphite Stem Packing/NBR Gasket Softgoods, 11.02 in Diameter Hand Wheel, Import
- Outside-screw-and-yoke stem design gives visual reference to disc wedge position and is more durable than non-rising stem designs, as the stem threads are external and aren't exposed to the media flow
- IBBM design: Iron-body-bronze-mount, with bronze seat and wedge sealing rings
- Solid wedge assures a positive drip-tight closure
- Durable cast iron construction resists pipeline stresses and distortion
- All external surfaces are primed and dual-coat painted for corrosion resistance
- Full-flow waterways minimize pressure drop
- 125 psi WSP saturated steam
| Softgoods Material | Flexible Graphite Stem Packing/NBR Gasket |
|---|---|
| End Style | Flanged |
| Hand Wheel Diameter | 11.02 in |
| Pressure Class | 125 lb |
| Domestic/Import | Import |
| Inlet to Outlet Length | 9.02 in |
| Top to Inlet Center | 19.53 in |
| Type | OS and Y |
| Pressure Rating | 200 psi CWP |
| Body Material | Cast Iron |
| Nominal Size | 4 in |
| Temperature Rating | 450 deg F |
| Series | T-303 |
| Actuator Type | Handwheel |
| Trim Material | Forged Brass |
| Brand | Legend |
