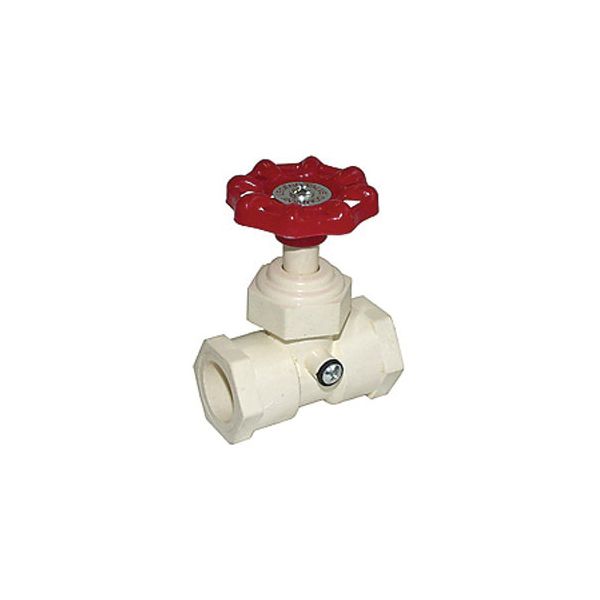

LEGEND 202-513
S-617 1/2 CPVC S&W VALVE
SKU
663438
LEGEND Stop and Waste Valve, Series: S-617, 1/2 in Nominal, Solvent End Style, 150 psi CWP Pressure, 180 deg F, Handwheel Actuator, 2-1/2 in Inlet to Outlet Length, CPVC Body, CPVC Trim, EPDM O-Ring Softgoods, 3.63 in Open H x 3.47 in Close H Dimensions, Import
- Not recommended for steam service
- Naturally lead free
- 150 psi CWP at 72 deg F non-shock
| Softgoods Material | EPDM O-Ring |
|---|---|
| Dimensions | 3.63 in Open H x 3.47 in Close H |
| End Style | Solvent |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2-1/2 in |
| Pressure Rating | 150 psi CWP |
| Body Material | CPVC |
| Nominal Size | 1/2 in |
| Temperature Rating | 180 deg F |
| Series | S-617 |
| Actuator Type | Handwheel |
| Trim Material | CPVC |
| Brand | Legend |
