LEGEND 204-106
1-1/4"PVC COMPRESSIONREPAIR COUPLING LEGEND
SKU
460399

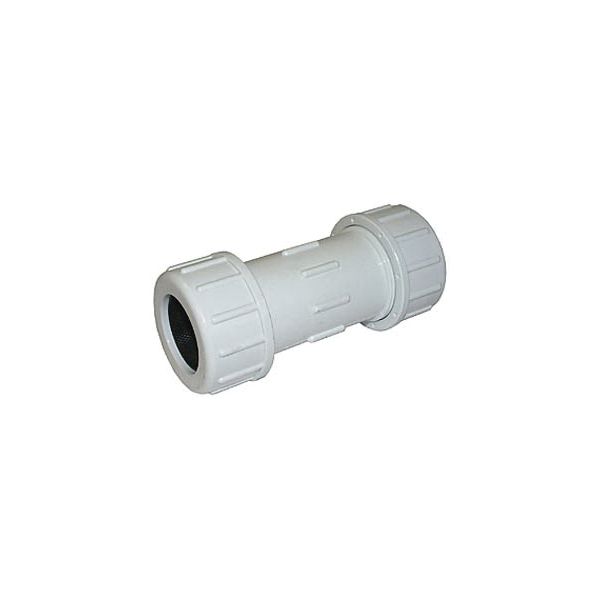

LEGEND 204-106, Long, Coupling Fitting/Connector, 1-1/4 in Nominal, Compression End Style, 6.3 in Length, SCH 40/STD and SCH 80/XH Schedule, 150 psi Pressure, PVC, NBR Buna-N Rubber Gasket Seal, 73 deg F, 2.87 in W Dimensions, Domestic/Import: Import
- Long-pattern bodies and large compression nuts add rigidity and minimize pipe deflection
- Constructed of corrosion proof, virgin PVC resin
- Compression-type end connections are designed to fit onto SCH 40/STD or SCH 80/XH pipe of various material types PVC, steel or red brass
- Open-center design without internal pipe end stops, permits easier slip-on repairs
- High performance commercial-grade NBR rubber gaskets feature textured inside diameters, enhancing the pressure seal while increasing grip
| Pressure Rating | 150 psi |
|---|---|
| Length | 6.3 in |
| Domestic/Import | Import |
| Nominal Size | 1-1/4 in |
| End Style | Compression |
| Material | PVC |
| Temperature Rating | 73 deg F |
| Fitting/Connector Type | Coupling |
| Seal Material | NBR Buna-N Rubber Gasket |
| Dimensions | 2.87 in W |
| Schedule Rating | SCH 40/STD and SCH 80/XH |
| Type | Long |
| Brand | Legend |
