Legend 314-154NL

SKU
581973

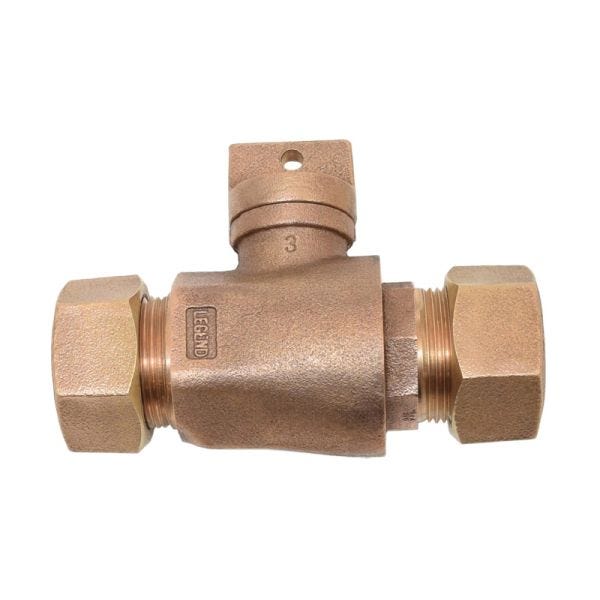

LEGEND Curb Stop, Lead Free, Series: T-5400NL, 3/4 in Nominal, Ring Compression, 300 psi CWP, 100 deg F, Full Port, 5.78 in Inlet to Outlet Length, 2.69 in Top to Inlet Center, Cast Bronze Body, Cast Bronze Trim, Buna-N Nitrile Rubber Seat, Import

  • Lead-free design is suitable for all no lead potable water installations, in full compliance of the lead-free plumbing law
  • Grip-ring compression end connections provide exceptional pullout resistance
  • 90 deg operation with enclosed operating head stops
  • Operating head has been drilled to accept stationary rod cotter pin attachment
  • Full-port, ball-and-seat design is superior to plug-type designs
  • Durable, PTFE coated ball assures positive, bubble-tight shutoff, low torque operation and long service life
  • For underground water service installations only, to permit shutoff of the water supply, from the water main to the building
More Information
Brand Legend
Port Type Full
Body Material Cast Bronze
Trim Material Cast Bronze
Nominal Size (in) 3/4
Pressure Rating 300 psi CWP
Manufacture Name Legend
End Style Ring Compression
Brand Name Legend
Country USA
Series T-5400NL
Softgoods Material Buna-N Nitrile Rubber Seat
Temperature Rating 100
Country of Manufacture United States
Temperature Rating UOM deg F
Inlet to Outlet Length (in) 5.78
Product Truck Shipping Flag no
Domestic/Import Import
Top to Inlet Center (in) 2.69
Length (in) 5.7
Height (in) 2.0
Width (in) 3.75
Weight (lb) 2.55
Volume (cu-in) 1140.74
Tax Class Name taxable goods
Item Condition new condition
