Legend 102-905

@ T-3005 1" ECON GAS BALL COCK
SKU
322704
The product cannot be delivered by Truck Shipping

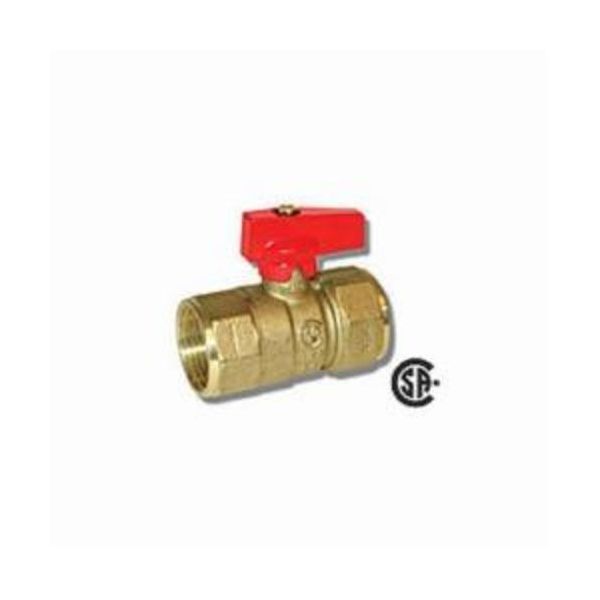

LEGEND Red Top™ Ball Valve, Series: T-3005, 1 in Nominal, FNPT, 400 psi CWP, 0.79 in Orifice, Forged Brass Ball, 2.87 in Inlet to Outlet Length, 1.65 in Top to Inlet Center, Forged Brass Body, Forged Brass Stem and PTFE Seat Trim, Import

  • Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low or moderate pressure gas applications
  • Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks
  • The 400 psi pressure rating permits high-pressure air tests, without the grease-seal Blow-out common to plug-type gas cocks
  • Not suitable for steam service
  • CSA certified for use with natural, manufactured or mixed liquefied petroleum and LP gas/air mixtures
  • CSA Certified 3-88 for use in 2 or 5 lb house piping systems
  • Economy gas ball valve
  • 400 psi non-shock cold working pressure
More Information
Softgoods Material PTFE
End Style FNPT
Media Gas
Ball Material Forged Brass
Domestic/Import Import
Inlet to Outlet Length 2.87 in
Top to Inlet Center 1.65 in
Type 2-Piece
Pressure Rating 400 psi CWP
Orifice Size 0.79 in
Body Material Forged Brass
Nominal Size 1 in
Series T-3005
Actuator Type Lever Operated
Trim Material Forged Brass Stem and PTFE Seat
Brand Legend
Type Ball Valve
