Pass & Seymour 1597NTLTRBKCCD4

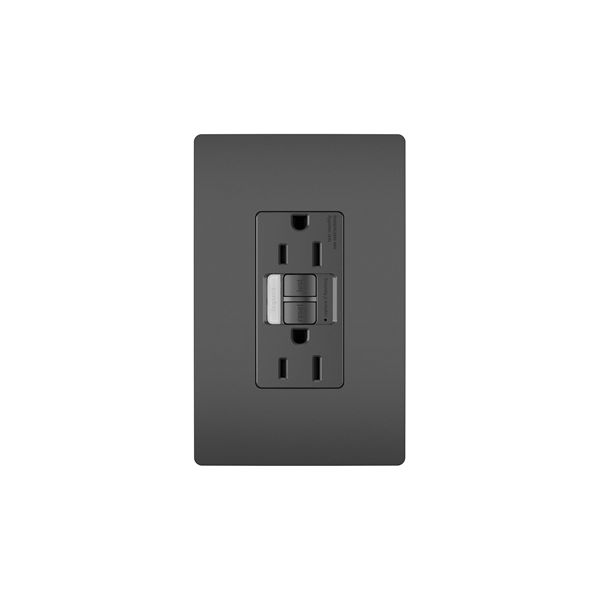

Pass & Seymour® Night Light/GFCI Receptacle, Combination Self-Test Tamper-Resistant, Series: radiant®, 125 VAC, 15 A, 60 Hz Frequency, NEMA 5-15R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire Terminal, Nylon/Thermoplastic, Black, 4.2 in H x 1.73 in W x 1.03 in D Dimensions

• Protects children - patented shutter system helps prevent improper insertion of foreign objects meeting National Electrical Code® tamper-resistant requirements
• Conducts an automatic test every 3 s, ensuring it's always ready to protect
• If the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
• Equipped with proven SafeLock® protection feature - if critical components are damaged and protection is lost, power to the receptacle is disconnected
• Thinner than competitors GFCI receptacles - leaves more room for wires in the box
• Sealed night light with high-impact-resistant Lexan® lens prevents tampering
• Energy efficient LED has an average life expectancy of 20 years and photocell automatically turns light On in dark and Off in daylight
• Feed-through wiring configuration allows GFCI to protect downstream receptacles
• Prevents line-load reversal miswire - no power to the face or downstream receptacles if wired incorrectly
• Side or internal screw pressure plate back wire with 14 to 10 AWG solid or stranded copper wire and (2) back wire holes per terminal
• Mounting screws are shipped captive in the device and wall plate for easier installation
• Dual direction test and reset button colors match the device face
• 10 kA short circuit rating
• 20 A feed-through capacity
