Legrand ADTH703TUM4
700W TRU-TOUCH DIM MAGN.
SKU
907659

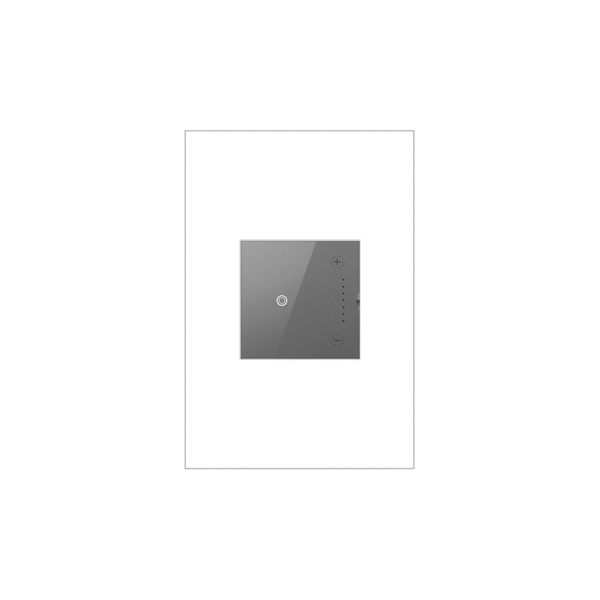

Legrand® Adorne® Touch™ Dimmer Switch, Universal, 120 VAC, 15 A, 700 W Power, 60 Hz Frequency, 1 Pole, ELV/Fluorescent/Halogen/Incandescent/LED/MLV Lamp, Operation Mode: 3-Way, Slide/Touch Control, Polycarbonate/Synthetic, Magnesium, 1.77 in H x 1.77 in W x 1.2 in D Dimensions
- Self-calibration feature allows you to select lamp type, which then automatically sets the minimum voltage for that lamp, eliminating flicker and poor performance
- Works with virtually any 120 VAC dimmable lamp and load on typical residential and light commercial wiring
- Use on its own to control a light from one location (single-pole operation) or pair with a 3-way switch to control a single light source from two locations (three-way operation)
- Preset, single pole and 3-way operation
- Tru-universal requires neutral
| Lamp Type | ELV/Fluorescent/Halogen/Incandescent/LED/MLV |
|---|---|
| Dimensions | 1.77 in H x 1.77 in W x 1.2 in D |
| Power Rating | 700 W |
| Voltage Rating | 120 VAC |
| Frequency Rating | 60 Hz |
| Color | Magnesium |
| Type | Universal |
| Number of Poles | 1 |
| Material | Polycarbonate/Synthetic |
| Amperage Rating | 15 A |
| Operation Mode | 3-Way |
| Control | Slide/Touch |
| Brand | Legrand |
| Amperage | 15 Amp |
| Type | Dimmer |
| Voltage | 120V |
