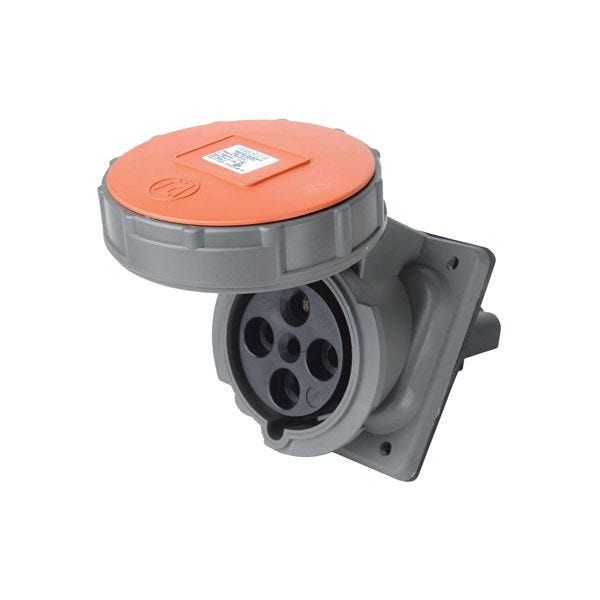

Pass & Seymour PS4100R12W
100A 4 WIRE 250V RECEPTACLE
SKU
886959
Pass & Seymour® Pin and Sleeve Receptacle, 3-Phase Watertight, 125/250 VAC, 100 A, 60/400 Hz, 3 Pole, 4 Wires, NEMA 4X, Commercial Grade, IP67 Enclosure, -50 to 80 deg C, Screw Terminal, Thermoplastic/Nylon, Black, 15 in
- Shrouded, nickel plated, solid brass pins provide corrosion protection and excellent conductivity
- An exclusive, hinged cord-grip eliminates loose parts that get lost
- 3000 VAC maximum dielectric voltage withstand voltage
- Stainless steel cover spring, neoprene mounting and sealing gasket, polyamide 6 contact carrier, brass sleeves, zinc plated steel terminal screws material
- 30 deg C temperature rise
- Nylon construction for high impact, combination head screws, rating compliance visible
| Dimensions | 15 in |
|---|---|
| Amperage Rating | 100 A |
| Color | Black |
| Grade | Commercial |
| Frequency Rating | 60/400 Hz |
| Voltage Rating | 125/250 VAC |
| Number of Wires | 4 |
| Material | Thermoplastic/Nylon |
| Temperature Rating | -50 to 80 deg C |
| Number of Poles | 3 |
| Type | 3-Phase Watertight |
| NEMA Rating | NEMA 4X |
| Enclosure | IP67 |
| Terminal Type | Screw |
| Brand | Pass & Seymour |
| Color | Black |
| Voltage | 125/250V |
| Type | Pin & Sleeve Receptacle W/Box |
| Amperage | 100A |
