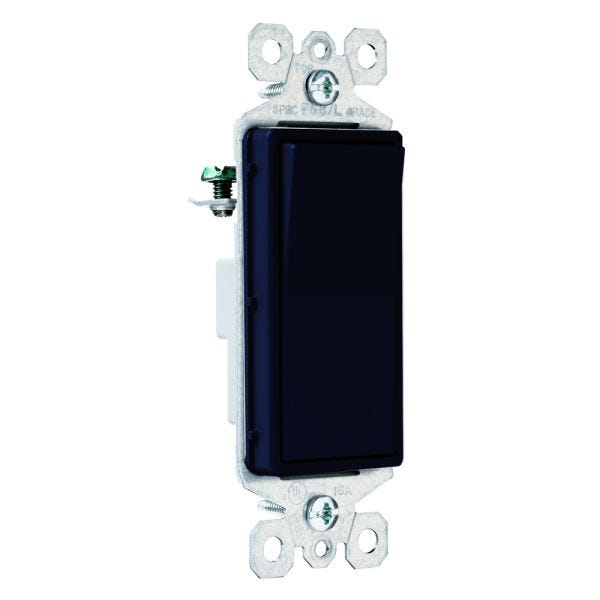

Pass & Seymour TM870BK
1P SWITCH 15A 120/27V BLACK
SKU
887757
Pass & Seymour® TradeMaster® Decorator Switch, Series: Radiant®, 120/277 VAC, 15 A, 1 Pole, ON/OFF Action, Paddle/Rocker Actuator, Bare Insulation, Wall Mounting, Threaded Terminal, Thermoplastic, Black, 4.19 in H x 1.43 in W x 1.27 in D Dimensions
- Part of the all new radiant® collection
- Smooth paddle action
- High impact resistant, thermoplastic construction
- External screw pressure plate back and side wired
- 14 AWG push wire size
- Narrow back body leaves more room for wires in the box
- Extra long, through body strap eliminates floating installations and imperfect applications
- Easy access green hex head ground screw
- Tri-drive ground, terminal and mounting screws
- On-Off switches conform to National Electrical Code 430-104 requirements for kitchen and disposal units
- Designer style satin finish rocker
- 1-gang
- 1-1/2 in THK
- Accepts 12 and 14 AWG wire size
| Dimensions | 4.19 in H x 1.43 in W x 1.27 in D |
|---|---|
| Voltage Rating | 120/277 VAC |
| Series | Radiant® |
| Insulation | Bare |
| Action | ON/OFF |
| Mounting | Wall |
| Color | Black |
| Number of Poles | 1 |
| Material | Thermoplastic |
| Terminal Type | Threaded |
| Amperage Rating | 15 A |
| Actuator | Paddle/Rocker |
| Brand | Legrand |
| Amperage | 15 Amp |
| Voltage | 120/277V |
| Color | Black |
