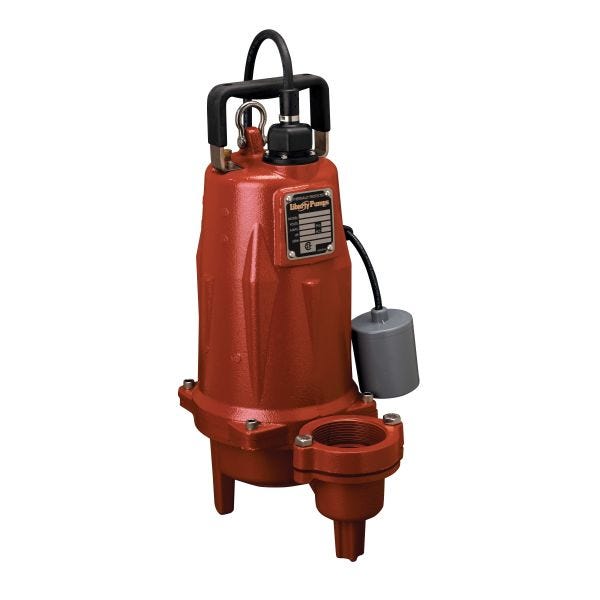

Liberty Pumps LEH152A2-2
1.5HP SEWAGE PUMP 2" 208-230V
SKU
697424
Liberty Pumps®, LEH152A2-2, Automatic High-Head, Series: LEH50, 200 gpm Flow Rate, 2 in Flanged Outlet, 70 ft Maximum Head, 1-1/2 hp, 208 to 230 VAC, 15 A Full Load/53 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJOOW 25 ft Cord, 1 Service Factor, Cast Iron 2-Vane Semi-Open Impeller, 135 deg C Thermal Overload, Ball Bearing, Cast Iron, 13 in W x 21 in H Dimensions
- Rugged two vane, semi-open cast iron impeller
- Cast iron housing and volute
- Stainless and brass fasteners
- Oil filled, hermetically sealed motor
- 303 stainless steel rotor shaft
- Permanently lubricated upper and lower ball bearings
- Unitized shaft seal
- Adjustable pumping range
- 50 ft integral float cord
- Built-in thermal protection on 1-phase models
- Dual shaft seals
- Quick connect 25 ft power cord
| Outlet Size | 2 in Flanged |
|---|---|
| Series | LEH50 |
| Horsepower | 1-1/2 hp |
| Flow Rate | 200 gpm |
| Motor Speed | 3450 rpm |
| Frequency Rating | 60 Hz |
| Amperage Rating | 15 A Full Load/53 A Locked Rotor |
| Material | Cast Iron |
| Service Factor | 1 |
| Phase | 1 ph |
| Type | Automatic High-Head |
| Voltage Rating | 208 to 230 VAC |
| Bearing Type | Ball |
| Maximum Head | 70 ft |
| Impeller Type | Cast Iron 2-Vane Semi-Open |
| Temperature Rating | 135 deg C Thermal Overload |
| Dimensions | 13 in W x 21 in H |
| Cord Type | SJOOW 25 ft |
| Brand | Liberty Pumps |
