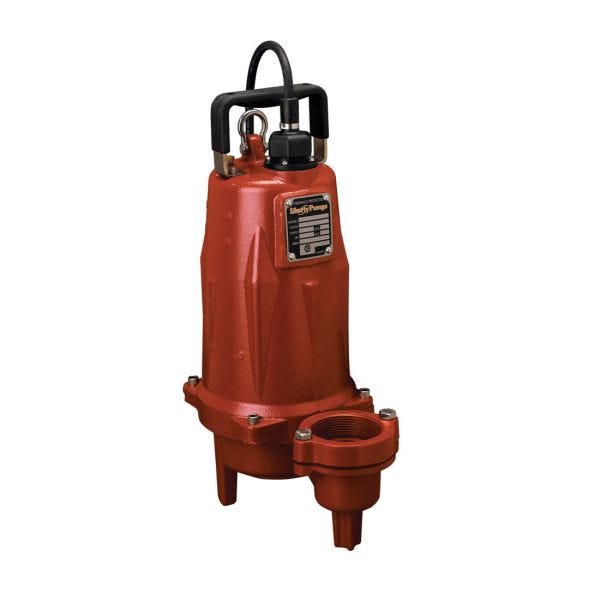

Liberty Pumps LEH154M2-3
1.5HP MANUAL SEWAGE PUMP 440V
SKU
896198
Liberty Pumps®, LEH154M2-3, High-Head Manual, Series: LEH150, 200 gpm Flow Rate, 2 in Flanged Outlet, 70 ft Maximum Head, 1-1/2 hp, 440 to 480 VAC, 5.7 A Full Load/31 A Locked Rotor, 60 Hz Frequency, 3 ph, 3450 rpm Motor, SEOOW 35 ft Cord, 1 Service Factor, Cast Iron 2-Vane Semi-Open Impeller, NEMA 4X Enclosure, Ball Bearing, Cast Iron, 13 in W x 21 in H Dimensions
- Rugged two vane, semi-open cast iron impeller
- Cast iron housing and volute
- Stainless and brass fasteners
- Oil filled, hermetically sealed motor
- 303 stainless steel rotor shaft
- Permanently lubricated upper and lower ball bearings
- Unitized shaft seal
- Adjustable pumping range
- Built-in thermal protection on 1-phase models
- Dual shaft seals
- Single float mechanical level control
- Quick disconnect 35 ft L standard power cord allows replacement of cord in seconds without breaking seals to motor
- 2 in solid handling
| Outlet Size | 2 in Flanged |
|---|---|
| Series | LEH150 |
| Horsepower | 1-1/2 hp |
| Flow Rate | 200 gpm |
| Motor Speed | 3450 rpm |
| Enclosure Type | NEMA 4X |
| Frequency Rating | 60 Hz |
| Amperage Rating | 5.7 A Full Load/31 A Locked Rotor |
| Material | Cast Iron |
| Service Factor | 1 |
| Phase | 3 ph |
| Type | High-Head Manual |
| Voltage Rating | 440 to 480 VAC |
| Bearing Type | Ball |
| Maximum Head | 70 ft |
| Impeller Type | Cast Iron 2-Vane Semi-Open |
| Dimensions | 13 in W x 21 in H |
| Cord Type | SEOOW 35 ft |
| Brand | Liberty Pumps |
