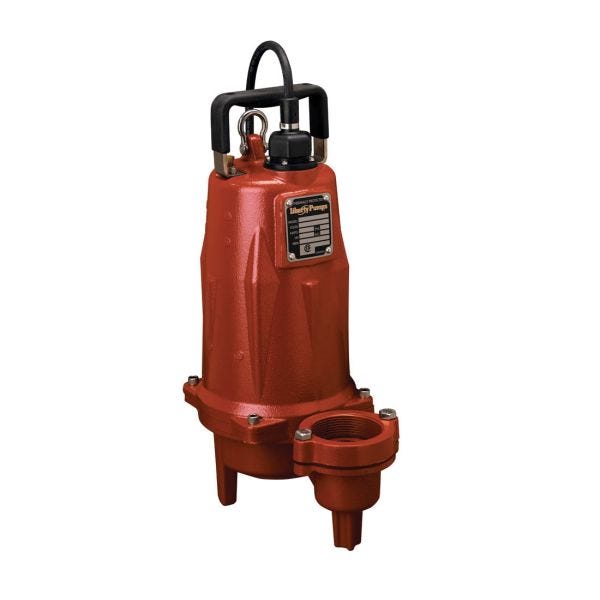

Liberty Pumps LEH202M2-2
2HP,230V HIGH HEAD SEWAGE PUMP
SKU
688853
Liberty Pumps®, LEH202M2-2, High-Head Manual, Series: LEH200, 200 gpm Flow Rate, 2 in Flanged Outlet, 82 ft Maximum Head, 2 hp, 230 VAC, 18 A Full Load/53 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJOOW 25 ft Cord, 1 Service Factor, Cast Iron 2-Vane Enclosed Impeller, 135 deg C Thermal Overload, Ball Bearing, Cast Iron, 13 in W x 21 in H Dimensions
- Rugged two vane, closed cast iron impeller
- Cast iron housing and volute
- Stainless steel fasteners
- Oil filled, hermetically sealed motor
- 303 stainless steel rotor shaft
- Permanently lubricated upper and lower ball bearings
- Dual, unitized shaft seals
- Quick connect 25 ft power cord
- Built-in thermal protection on 1-phase models
- 2 in solid handling
| Outlet Size | 2 in Flanged |
|---|---|
| Series | LEH200 |
| Horsepower | 2 hp |
| Flow Rate | 200 gpm |
| Motor Speed | 3450 rpm |
| Frequency Rating | 60 Hz |
| Amperage Rating | 18 A Full Load/53 A Locked Rotor |
| Material | Cast Iron |
| Service Factor | 1 |
| Phase | 1 ph |
| Type | High-Head Manual |
| Voltage Rating | 230 VAC |
| Bearing Type | Ball |
| Maximum Head | 82 ft |
| Impeller Type | Cast Iron 2-Vane Enclosed |
| Temperature Rating | 135 deg C Thermal Overload |
| Dimensions | 13 in W x 21 in H |
| Cord Type | SJOOW 25 ft |
| Brand | Liberty Pumps |
