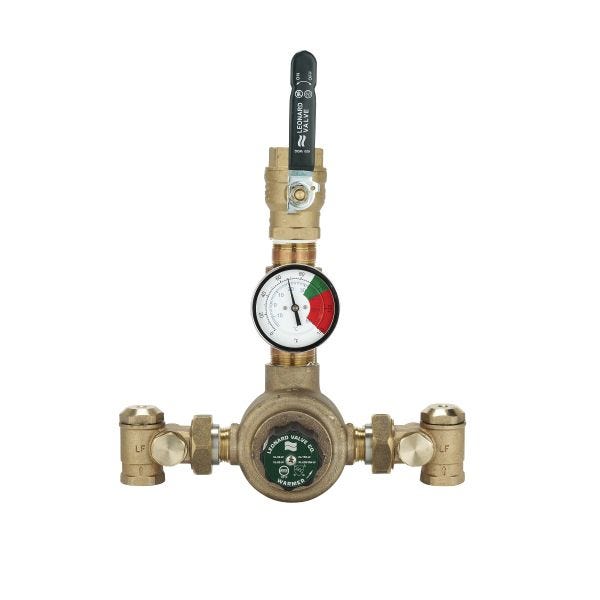

LEONARD® ECO-MIX ™ Thermostatic Mixing Valve, High Low, 1 x 1-1/4 in Nominal, FNPT, 125 psi, 90 to 140 deg F, 1 to 61 gpm Flow, Rough Bronze, 6 in H x 11-1/2 in W
- High low thermostatic water mixing valve with 1 gpm (3.8 l/min) minimum flow capacity
- Outlet dial thermometer and ball valve
- Integral combination checkstops with strainers and wall support
- Copper encapsulated thermostatic assembly with teflon coated stainless steel shuttle
- Locking temperature regulating handle set for 120 deg F(49 deg C)
- Internal parts of stainless steel
- Note: the valve will maintain temperature with 0.5 gpm flow from the domestic hot water loop when properly installed near the hot water source with a continuously operating recirculation pump
- Caution: all thermostatic water mixing valves have limitations, they will not provide the desired accuracy outside of their flow capacity range
- Consult the flow capacity chart and do not oversize, minimum flow must be no less than as indicated
