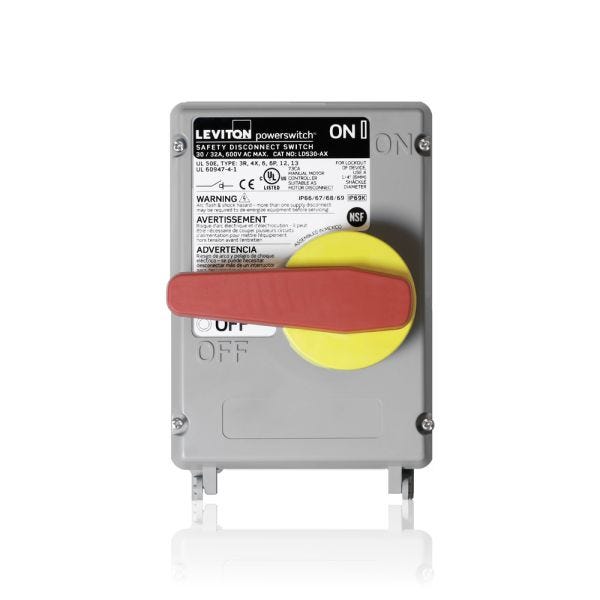

Leviton LDS30-AX
30AMP NF DISC NON METALLIC ENC
SKU
882967
Leviton® Powerswitch® Disconnect Switch, Non-Fused Non-Metallic, 600 VAC, 30 A, 5 hp, 25 hp, 1/3 ph, 10 kA Short Circuit, Handle Actuator, NEMA 3R/4/4X/6/6P/12/13/IP66/IP67/IP68/IP69/IP69K Enclosure, Foot Mounting, -40 to 75 deg C, 5 in W x 3 in D x 7 in H Dimensions, Polybutylene Terephthalate/Polycarbonate
- 200 kA SCCR when protected by type J fuse
- Overmold handle with longer length for improved grip and durability
- Captive, triple head cover screws constructed of stainless steel
- Handle accommodates 3 padlocks for OSHA compliant lockout/tagout
- Compact enclosure size for installation versatility
| Phase | 1/3 |
|---|---|
| Voltage Rating | 600 VAC |
| Amperage Rating | 30 A |
| Actuator Type | Handle |
| Mounting Type | Foot |
| Temperature Rating | -40 to 75 deg C |
| Horsepower | 5 hp, 25 hp |
| Type | Non-Fused Non-Metallic |
| Dimensions | 5 in W x 3 in D x 7 in H |
| Mounting Type | Foot |
| Short Circuit Current Rating | 10 kA |
| Type | Non-Fused Non-Metallic |
| Enclosure Type | NEMA 3R/4/4X/6/6P/12/13/IP66/IP67/IP68/IP69/IP69K |
| Material | Polybutylene Terephthalate/Polycarbonate |
| Brand | Leviton Mfg |
