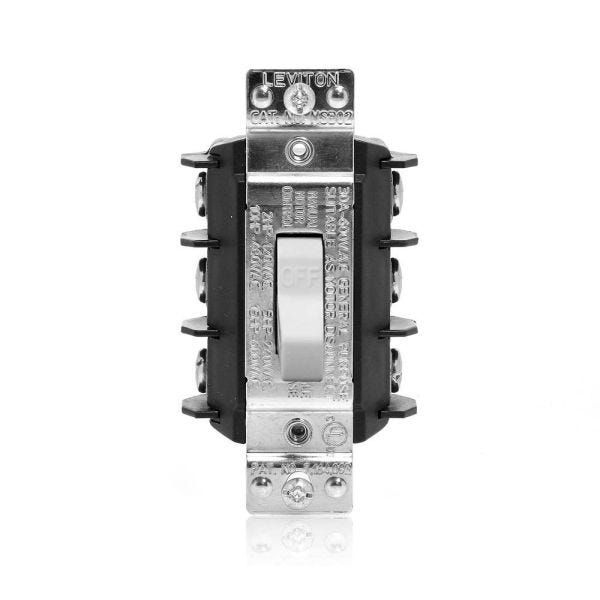

Leviton MS302-DSW
30A 2P 600V MOTOR TOG SWITCH
SKU
928061
Leviton® Powerswitch® AC Motor Controller, 1-Phase Manual Non-Grounding, 600 VAC, 30 A, 20 hp Power, 2 Pole, Toggle Actuator, Back/Side Wired/Screw Connection, Yoke Mounting, 6000 Cycles Operating Cycles, Thermoplastic Polyester, White, Environmental Conditions: -40 to 60 deg C, 3.75 in H x 2.03 in W x 2.46 in D Dimensions
- All molded parts are thermoplastic to resist impact, chemicals, temperature, tracking and arcing
- Cam driven mechanism enhances fast make/slow break
- Silver alloy contacts for maximum conductivity and service life
- External clamps accept back and side wiring
- Insulating barrier between terminals provide isolation between phases
- Nickel plated brass mounting yoke for superior strength and corrosion-resistance
- Oversized toggle provides positive actuation, even with gloved hand
- Provide safe, reliable control of a variety of motor loads
| Dimensions | 3.75 in H x 2.03 in W x 2.46 in D |
|---|---|
| Power Rating | 20 hp |
| Voltage Rating | 600 VAC |
| Operating Cycles | 6000 Cycles |
| Connection | Back/Side Wired/Screw |
| Mounting | Yoke |
| Environmental Conditions | -40 to 60 deg C |
| Color | White |
| Type | 1-Phase Manual Non-Grounding |
| Number of Poles | 2 |
| Material | Thermoplastic Polyester |
| Amperage Rating | 30 A |
| Actuator | Toggle |
| Brand | Leviton Mfg |
| Amperage | 30 Amp |
