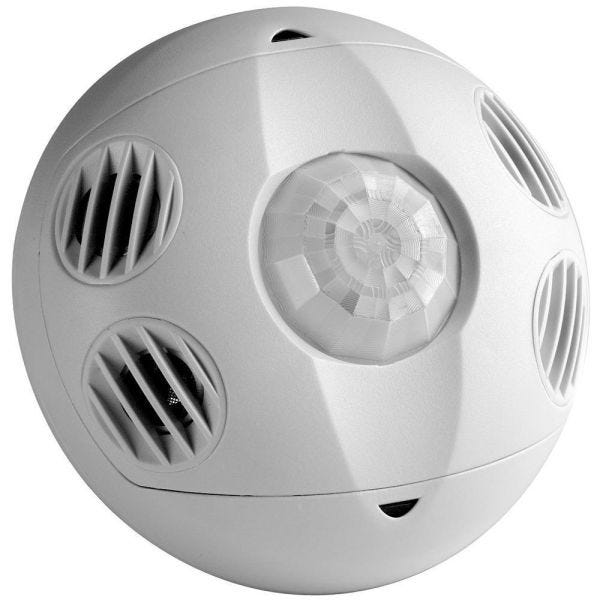

Leviton OSC10-M0W
OCC/PIR CEIL SENSOR LEVITON
SKU
899945
Leviton® Occupancy Sensor, Low Voltage, 24 VDC, 25 mA, PIR/Ultrasonic Sensor, 1000 sq-ft Coverage, 360 deg Viewing, 30 s to 30 min Time Delay, LED Lamp, 40 kHz Response, Wired Connection, Automatic On/Automatic Off Control Output, Ceiling Mounting, 0 to 40 deg C, Plastic, Off-White, 4.2 in Dia x 1.571 in D Dimensions
- Small size installed sensor appears almost invisible
- Fast simple installation easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment
- Accurate, consistent switching occupant complaints are eliminated, lights are ON when room is occupied, OFF when empty, annoying false-offs are minimized and lights ON at night is eliminated
- Self-adapting an internal microprocessor continually analyzes, evaluates and adjusts settings, performance is kept at a maximum and user complaints are eliminated
- Maximum reliability, low cost all digital circuitry uses a minimum of components
- Non-volatile memory learned and adjusted settings saved in protected memory, power outages will not cause status loss
- Ambient light recognition the photocell prevents lights from turning ON when room is adequately lit by natural light
| Response Frequency | 40 kHz |
|---|---|
| Lamp Type | LED |
| Temperature Rating | 0 to 40 deg C |
| Type | Low Voltage |
| Mounting Type | Ceiling |
| Connection Type | Wired |
| Material | Plastic |
| Viewing Angle | 360 deg |
| Sensor Type | PIR/Ultrasonic |
| Dimensions | 4.2 in Dia x 1.571 in D |
| Coverage | 1000 sq-ft |
| Voltage Rating | 24 VDC |
| Control Output | Automatic On/Automatic Off |
| Amperage Rating | 25 mA |
| Color | Off-White |
| Time Delay | 30 s to 30 min |
| Brand | Leviton Mfg |
