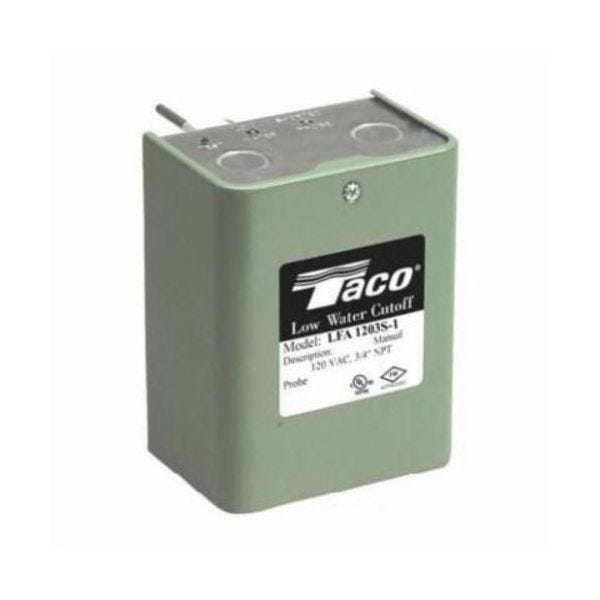

Taco LFM1203S-1
TACO 120V MAN RESET LWCO
SKU
557573
Taco®, LFM1203S-1, Low Water Cut-Off, Series: LF Series, 120 VAC, 150 deg F, 250 psi Pressure, Manual Reset, NPT Connection, 3/4 in Thread, 3 VA Power, 3 in Length, 4.41 in Width, 5.90 in Height
- The DualVision™ technology provides continuous protection against false water level detection due to probe being in foam
- Automatic detection of foaming conditions and shutdown of boiler when water level becomes unsafe
- Eliminates intermittent shutdown of the boiler
- 125 VA pilot rating
- Delays: Delay on Make (DOM), and Delay on Break (DOB), automatically provided based upon boiler conditions
- 250 deg F max probe temperature
- 150 deg F maximum ambient temperature
- Probe sensitivity - extended operation to 20 kOhm, service range 20 to 40 kOhm
- Enclosures - control unit NEMA Type 1 (For indoor use only)
- Formed sheet metal with powder coat/plated finish
- Five openings for 1/2 in conduit fittings
- 7.5 A full load
- 43.2 A locked rotor
- Patented DualVision Technology automatically detects between foam or water
- External LEDs and simplified wiring for easy installation
- Worry Free Operation
- Direct probe to control connection - NEMA 4 remote probe
- Manual reset
- Probe style, microprocessor based control detects the fluid level in hot water and steam boilers
- Foam compensating
| Pressure Rating | 250 psi |
|---|---|
| Series | LF Series |
| Reset Type | Manual |
| Connection Type | NPT |
| Height | 5.90 in |
| Length | 3 in |
| Thread Size | 3/4 in |
| Power Rating | 3 VA |
| Width | 4.41 in |
| Temperature Rating | 150 deg F |
| Voltage Rating | 120 VAC |
| Brand | Taco |
