Powers 6550053
POWERS 2" MIXING VALVE
SKU
606169

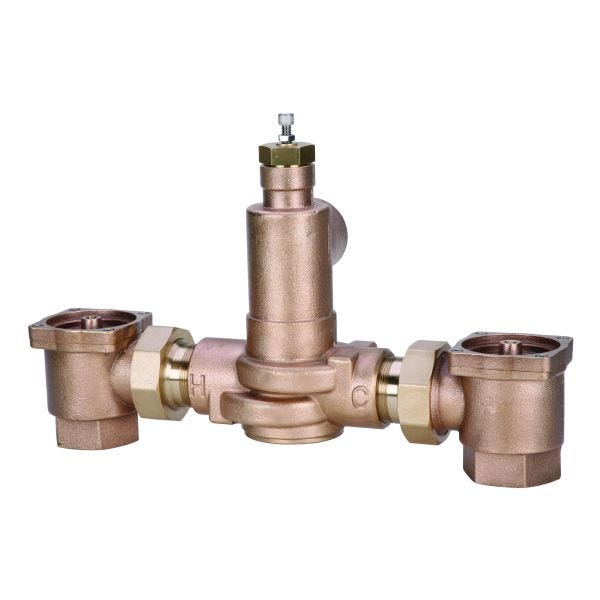

Powers™ HydroGuard® XP Master Tempering Valve, Series: LFMM430, 2 in Nominal, NPT, 125 psi, 5 to 200 deg F, 208 gpm, Media: Water, Brass Body, Rough Bronze, 19-1/4 in L, Domestic
- 208 GPM (787 LPM) Valve capacity at 45 psi
- Advanced thermal actuator
- Rotatable union triple-duty checkstops
- Vandal-resistant, locking mechanism to secure temperature setting
- Virtual shutoff if supply pressure fails
- Mounts in any position
- 90 to 160 deg F adjustment temperature
- Dirt and lime resistant poppet and seat design
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Nominal Size | 2 in |
|---|---|
| Finish | Rough Bronze |
| Body Material | Brass |
| Media | Water |
| Domestic/Import | Domestic |
| Dimensions | 19-1/4 in L |
| Pressure Rating | 125 psi |
| Flow Rate | 208 gpm |
| Series | LFMM430 |
| Temperature Rating | 5 to 200 deg F |
| End Style | NPT |
| Brand | Powers |
