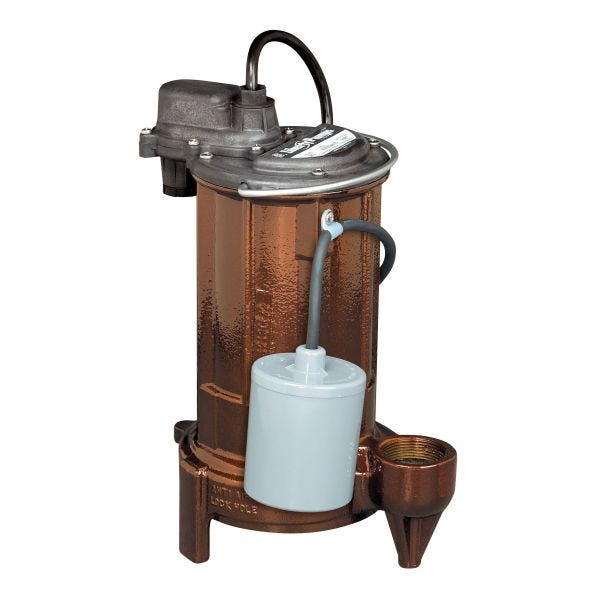

Liberty Pumps 283-2
1/2HP CI AUTO SUMP PUMP 25'CRD
SKU
253759
Liberty Pumps®, 283-2, Series: 280, 63 gpm Flow Rate, 1-1/2 in Outlet, 37 ft Maximum Head, 1/2 hp, 115 VAC, 8 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 25 ft Cord, Vortex Impeller, 221 deg F Thermal Overload, Ball/Race Bearing, Cast Iron, 10 in W x 13 in H Dimensions
- Liberty Pumps®'s unique, one-piece unit body casting
- Quick connect power cord
- Permanently lubricated upper and lower bearings
- Oil filled, hermetically sealed motors with thermal overload protection
- Stainless steel, removable bottom screen
- Stainless steel rotor shaft
- Class B stator winding
- Automatic operation
- 3/4 in solid handling
- Wide-angle float, series plug
| Material | Cast Iron |
|---|---|
| Cord Type | SJTW 25 ft |
| Frequency Rating | 60 Hz |
| Temperature Rating | 221 deg F Thermal Overload |
| Impeller Type | Vortex |
| Bearing Type | Ball/Race |
| Series | 280 |
| Outlet Size | 1-1/2 in |
| Voltage Rating | 115 VAC |
| Flow Rate | 63 gpm |
| Maximum Head | 37 ft |
| Motor Speed | 3450 rpm |
| Dimensions | 10 in W x 13 in H |
| Phase | 1 ph |
| Amperage Rating | 8 A |
| Horsepower | 1/2 hp |
| Brand | Liberty Pumps |
