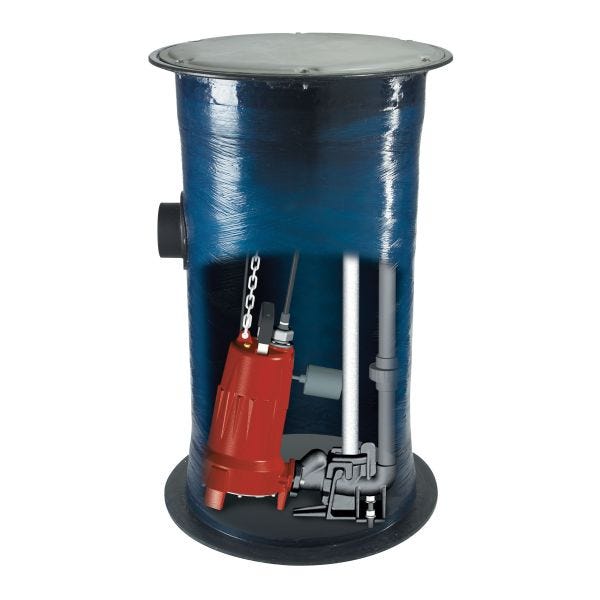

Liberty Pumps 2448LSGX202
*SIMPLEX GRINDER PUMP PACKAGE
SKU
757742
Liberty Pumps®, 2448LSGX202, 2-Stage Pre-Assembled, Series: 2448LSGX, 38 gpm Maximum, 10 ft Rated Head, Automatic/Non Automatic: Automatic, 93 gal Basin, 4 in Hub Inlet, 1-1/4 in NPT Outlet, 185 ft Maximum Head, 2 hp, 208 to 230 VAC, 15 A Full Load/53 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, 25 ft Cord, 1 Service Factor, 300 Stainless Steel Impeller, Guide Rail System Mounting, 275 deg F Thermal Overload, NEMA 4X Enclosure, Upper Radial/Lower Thrust Bearing, Fiberglass
- Factory assembled 2 hp grinder pump 24 in diameter system
- Pre-mounted floats for pump control and alarm
- 4 in Fiberglass hub with 4 in rubber pipe seal
- Factory pre-assembled guide rail system
- All stainless steel supports and brackets pre-mounted
- Stainless steel chain for pump lift out
- 12 in discharge depth
- Solid heavy duty fiberglass cover
- 1-1/4 in SCH 80/XH discharge piping with ball valve and check valve
- Two-stage submersible pump
- SCH 80/XH discharge pipe
| Material | Fiberglass |
|---|---|
| Service Factor | 1 |
| Outlet Size | 1-1/4 in NPT |
| Cord Type | 25 ft |
| Motor Speed | 3450 rpm |
| Series | 2448LSGX |
| Bearing Type | Upper Radial/Lower Thrust |
| Enclosure Type | NEMA 4X |
| Basin Capacity | 93 gal |
| Inlet Size | 4 in Hub |
| Mounting Type | Guide Rail System |
| Rated Head | 10 ft |
| Frequency Rating | 60 Hz |
| Type | 2-Stage Pre-Assembled |
| Horsepower | 2 hp |
| Maximum Flow Rate | 38 gpm |
| Maximum Head | 185 ft |
| Impeller Type | 300 Stainless Steel |
| Automatic/Non Automatic | Automatic |
| Temperature Rating | 275 deg F Thermal Overload |
| Amperage Rating | 15 A Full Load/53 A Locked Rotor |
| Voltage Rating | 208 to 230 VAC |
| Phase | 1 ph |
| Brand | Liberty Pumps |
