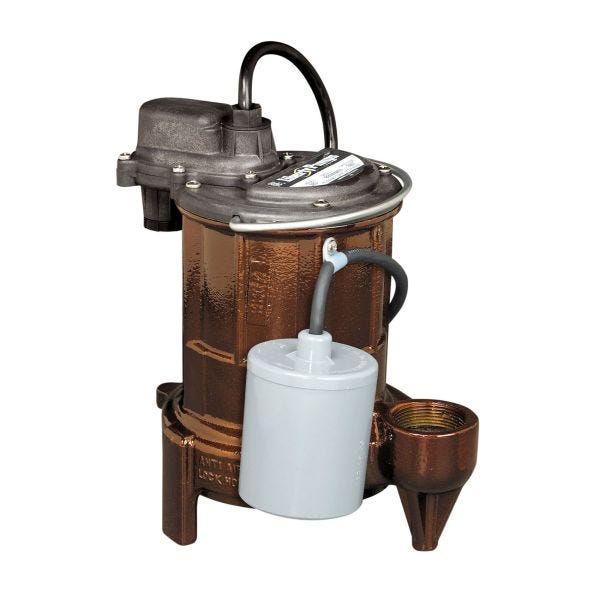

Liberty Pumps 253-2
LIBERTY 1/3HP SUB 115V W/25'
SKU
386128
Liberty Pumps®, 253-2, Low-Head, Series: 250, 45 gpm Maximum, 5 ft Rated Head, Automatic/Non Automatic: Automatic, 1-1/2 in Outlet, 23 ft Maximum Head, 1/3 hp, 115 VAC, 5.2 A Full Load/8 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 25 ft Cord, Engineered Polymer Vortex Impeller, 221 deg F Thermal Overload, NEMA 1/4X Enclosure, Ball/Race Bearing, Cast Iron, 9.6 in W x 10.5 in H Dimensions
- Liberty Pumps®'s unique, one-piece "unit body" casting
- Durable epoxy powder coat finish
- Permanently sealed and lubricated bearings
- Quick connect power cord
- 1/2 in solid handling
- 140 deg F fluid temperature
- Class B stator winding
- Piggy back float operation
- Wide-angle float, series plug
| Motor Speed | 3450 rpm |
|---|---|
| Frequency Rating | 60 Hz |
| Automatic/Non Automatic | Automatic |
| Enclosure Type | NEMA 1/4X |
| Maximum Flow Rate | 45 gpm |
| Type | Low-Head |
| Rated Head | 5 ft |
| Cord Type | SJTW 25 ft |
| Temperature Rating | 221 deg F Thermal Overload |
| Amperage Rating | 5.2 A Full Load/8 A Locked Rotor |
| Outlet Size | 1-1/2 in |
| Phase | 1 ph |
| Bearing Type | Ball/Race |
| Maximum Head | 23 ft |
| Dimensions | 9.6 in W x 10.5 in H |
| Impeller Type | Engineered Polymer Vortex |
| Series | 250 |
| Material | Cast Iron |
| Horsepower | 1/3 hp |
| Brand | Liberty Pumps |
