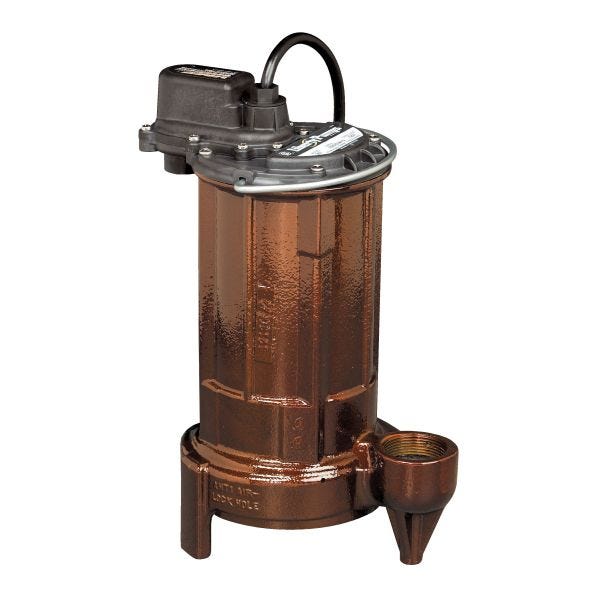

Liberty Pumps 291
3/4HP 115V W/FLOAT 10' CRD
SKU
770251
Liberty Pumps®, 291, Series: 290, 77 gpm Flow Rate, 1-1/2 in Outlet, 48 ft Maximum Head, 3/4 hp, 115 VAC, 10.4 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 25 ft Cord, Vortex Impeller, 248 deg F Thermal Overload, Ball/Race Bearing, Cast Iron, 10 in W x 13 in H Dimensions
- Liberty Pumps®'s unique, one-piece unit body casting
- Permanently lubricated upper and lower bearings
- Oil filled, hermetically sealed motors with thermal overload protection
- Stainless steel and removable bottom screen
- Stainless steel rotor shaft
- Stainless steel fasteners
- 24 A locked rotor
- 140 deg F fluid temperature
- Automatic operation
- Class B stator winding
- Quick disconnect 10 ft standard power cord allows replacement of cord in seconds without breaking seals to motor
- Wide angle float
| Amperage Rating | 10.4 A |
|---|---|
| Frequency Rating | 60 Hz |
| Motor Speed | 3450 rpm |
| Temperature Rating | 248 deg F Thermal Overload |
| Horsepower | 3/4 hp |
| Phase | 1 ph |
| Dimensions | 10 in W x 13 in H |
| Cord Type | SJTW 25 ft |
| Impeller Type | Vortex |
| Series | 290 |
| Flow Rate | 77 gpm |
| Voltage Rating | 115 VAC |
| Bearing Type | Ball/Race |
| Maximum Head | 48 ft |
| Outlet Size | 1-1/2 in |
| Material | Cast Iron |
| Brand | Liberty Pumps |
